R84G-4GK-RMG, Norgren G 1/2 Pneumatic Regulator - 0.3bar to 10bar, 1/2in, 10bar max. input, Регулятор

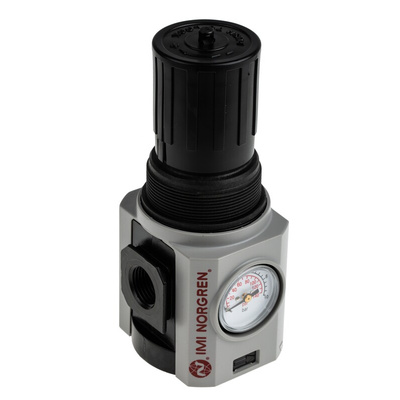

IMI Norgren Pneumatic Pressure Regulator, 0.3 to 10 Bar, 7500L/s Flow Rate - Excelon Plus Series - R84G-4GK-RMG

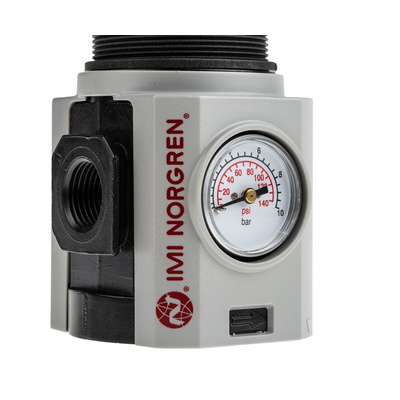

This relieving pressure regulator from IMI Norgren keeps output pressure within a constant range. It ensures that downstream pneumatic equipment isn't damaged by fluctuations in input pressure or an increased demand for compressed air supply. The component features a pressure gauge that's flush-mounted, so it won't get in your way during use. Its measurement units are clearly displayed to make diagnostics quick. Thanks to its wide output pressure range of 0.3 to 10 bar, this is a suitable choice for use in low-pressure and high-pressure applications.

Features & Benefits

• Compact dimensions of 70 (length) x 74 (width) x 167mm (height) to minimise bulk in your setup
• Compatible with quick in-line installation for convenient and efficient assembly
• Robust die-cast aluminium body is resistant to corrosion and wear for use in harsh environments

Applications

• Heating and cooling systems
• Cold storage facilities
• Food and beverage industry

How does a relieving pressure regulator work?

A relieving pressure regulator has a venting valve that opens to release excess air if the downstream pressure rises above the pressure setting of the regulator. It's frequently used in pneumatic systems to power actuators, air tools, spraying equipment and blow-off nozzles.

Datasheet R84G-4GK-RMG

Brochure - Excelon Plus Modular Air Preparation for All Industrial Applications

Installation Sheet - Air Preparation Range
