R84G-6GK-RMG, Norgren G 3/4 Pneumatic Regulator - 0.3bar to 10bar, 3/4in, 10bar max. input, Регулятор

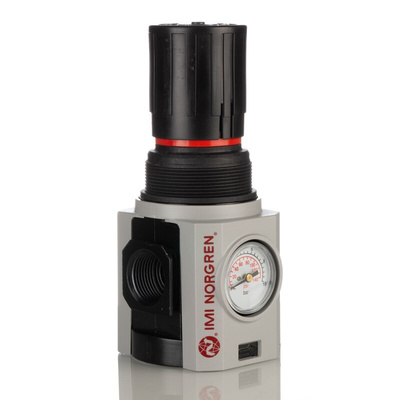

IMI Norgren Pneumatic Regulator, 0.3 to 10 Bar Outlet Pressure, 3/4in Thread - Excelon Plus Series - R84G-6GK-RMG

Need a pneumatic regulator that'll fit seamlessly into your system? This regulator from IMI Norgren can be installed either inline or as part of a modular system to suit your needs. Its compact dimensions of 70 (L) x 74 (W) x 167mm (H) help save space when building your system, while a flush-mounted integrated gauge lets you monitor operation at a glance. Standard 3/4 and 3/8 ports make this unit compatible with other commonly used pneumatic components.

Features & Benefits

• Operating temperature range of -10°C to +60°C for use in harsh environments.
• Push-to-lock adjusting knob has a built-in tamper-resistant feature so you can be sure your system stays at the correct pressure
• Die-cast aluminium body combines low weight with strength and rigidity
• Nitrile rubber seals keep out foreign bodies and guard against pressure loss

Applications

• Workshops
• Mobile automotive equipment
• Production lines

What does a pneumatic regulator do?

A pneumatic regulator, also known as a pressure regulator or pressure-reducing valve, maintains the pressure in a pneumatic system at a constant, pre-set level, regardless of any fluctuations in input or output pressure.

Datasheet R84G-6GK-RMG

Brochure - Excelon Plus Modular Air Preparation for All Industrial Applications

Installation Sheet - Air Preparation Range 82 Series,84 Series
