F84G-4GN-AP1, Norgren Excelon Plus series 5μm G 1/2 0.3bar to 10 bar Pneumatic Filter 4680L/min max with Automatic drain, Фильтр

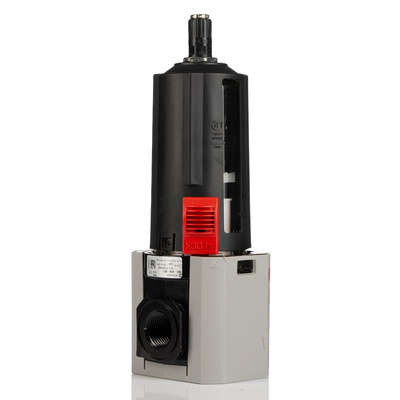

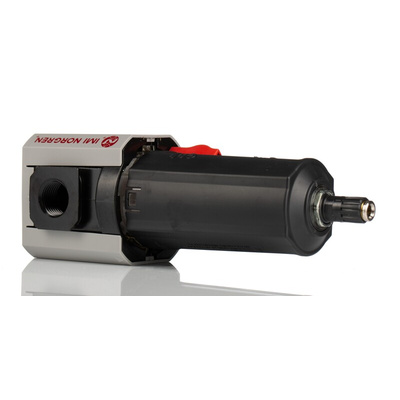

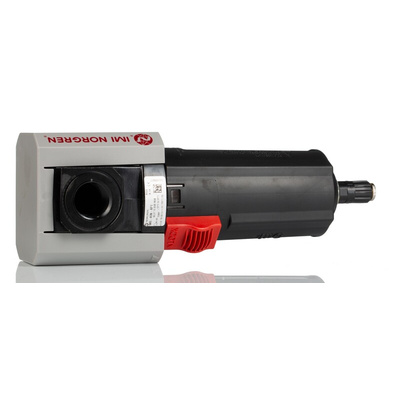

IMI Norgren Pneumatic Filter, Polycarbonate Bowl Material, Automatic Drain Type - Excelon Plus Series - F84G-4GN-AP1

Keep your pneumatic system running at peak efficiency with this filter from IMI Norgren. It stops water and particulate matter from contaminating the air supply, which can lead to equipment failure. An automatic drain releases liquid build-up when it detects that levels are high, making this component ideal for systems that are difficult to access. The polycarbonate bowl is resistant to impact and corrosion for use in heavy-duty environments. For added safety, this filter is fitted with a double-lock mechanism that helps to prevent tampering.

Features & Benefits

• Chloroprene O-ring is resistant to moisture and corrosion for a long service life
• Standard G1/2 port connection offers widespread compatibility and ease of installation
• Wide operating temperature range between -10ºC and +60ºC for use in harsh industrial settings

Applications

• Vehicle manufacturing
• Railway industry
• Petrochemical production

What sorts of contaminants does this product remove?

Thanks to its 5μ filtration size, you can rely on this filter to remove all visible particulates and more than 98% of water from your pneumatic air supply.

Datasheet F84G-4GN-AP1

Norgren Excelon Plus Air Preparation Brochure

Instruction Sheet - Air Preparation Range 1/4, 3/8 82 Series, 3/8, 1/2, 3/4 84 Series
