F84G-4GN-AP3, Norgren Excelon Plus series 40μm G 1/2 0.3bar to 10 bar Pneumatic Filter 4680L/min max with Automatic drain, Фильтр

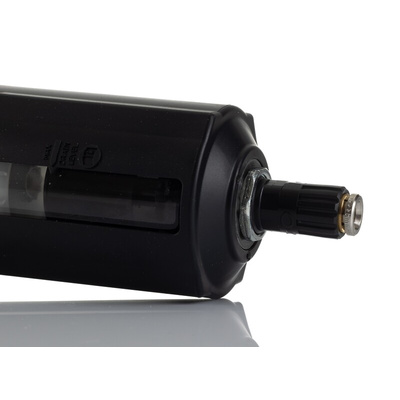

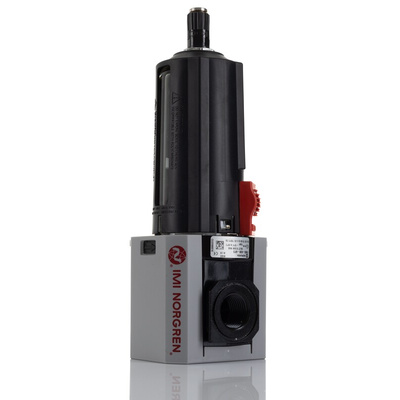

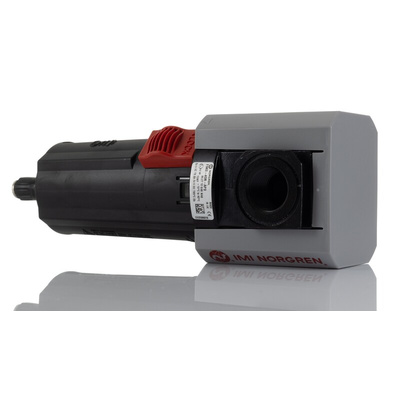

IMI Norgren Pneumatic Filter, Polycarbonate Bowl, Double Safety Lock - Excelon Plus Series - F84G-4GN-AP3

For a squeaky clean air supply, choose this hardworking pneumatic filter from IMI Norgren. It removes particles down to 40μm to keep the flow going and ensure your pneumatics are working efficiently. Part of a flexible modular system, you can integrate this unit according to your own specifications for convenience. With compact dimensions of 73 (L) x 70 (W) x 208mm (D), it's simple to set up in tight spaces. The maximum flow rate of 4680l/min makes this a great option for high-speed pneumatic systems.

Features & Benefits

• Automatic drain means less maintenance, saving you time
• Transparent polycarbonate bowl allows you to view the level of filtered impurities at a glance
• Double safety lock guards against unintentional opening
• Operating temperature range between -10°C and +60°C makes it suitable for harsh industrial environments
• G1/2 connection has wide compatibility with standard fittings

Applications

• Food and beverage packaging
• Marine sector
• Pharmaceutical industry

How does the automatic drain work?

The automatic drain on this pneumatic filter is a valve that closes when the system is pressurised. It opens when liquid accumulates and raises a float, or when the system is depressurised.

Datasheet F84G-4GN-AP3

Norgren Excelon Plus Air Preparation Brochure

Installation Guide - 82,84 Series

Catalogue - Industrial Automation
