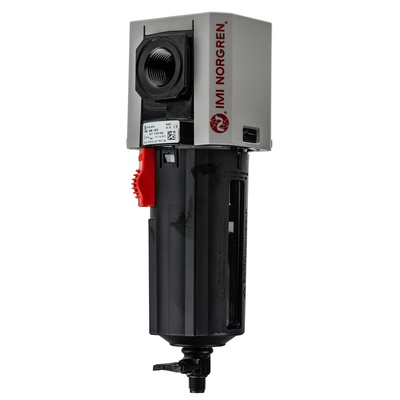

F84G-4GN-QP3, Norgren Excelon Plus series 40μm G 1/2 0.3bar to 10 bar Pneumatic Filter 4680L/min max with Manual drain, Фильтр

IMI Norgren High-Flow Pneumatic Filter, 0.3 to 10 Bar, 4680L/min Flow Rate - Excelon Plus Series - F84G-4GN-QP3

Prevent dirt build-up in your pneumatic equipment by removing contaminants with this IMI Norgren pneumatic filter. Its high flow rate of 4680L/min (litres per minute) means it's effective in applications with extremely heavy flow. The filter comes with a polycarbonate bowl that effectively traps contaminants. Its enhanced tensile strength means it's resistant to hard impacts for use in demanding factory settings. Thanks to a wide operating temperature range between -10°C and +60°C, this is a reliable option for use in extreme conditions.

Features & Benefits

• Broad operating pressure range of 0.3 to 10 bar is effective in low-pressure applications
• Filtration size of 40μm (micrometres) makes it reliable against small particles
• Aluminium body is corrosion-resistant for an extended service life

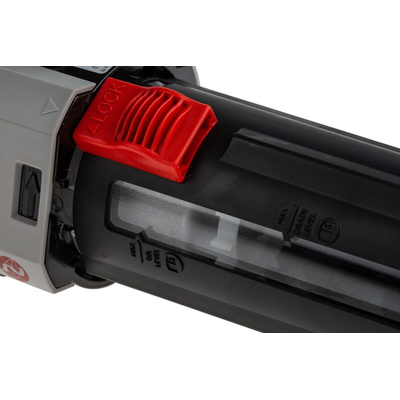

• Double safety lock on bowl prevents tampering
• Sintered polypropylene (PP) filter is thermal resistant to withstand extreme temperatures

Applications

• Food and beverage production
• Chemical plants
• HVAC (heating, ventilation and air-conditioning) systems

How is condensation drained from this pneumatic filter?

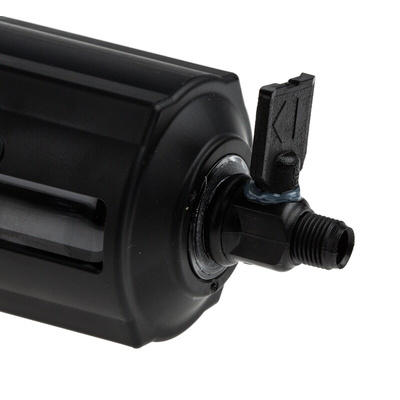

This filter uses a manual drain system. It comes with an indicator lens that lets you know when it's full so you can quickly empty it to prevent machine downtime.

Datasheet F84G-4GN-QP3

Brochure - Excelon Plus Modular Air Preparation for All Industrial Applications

Installation Sheet - Air Preparation Range
