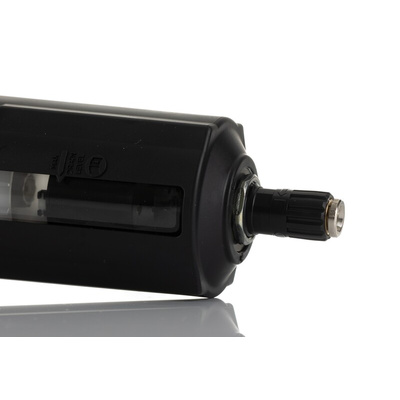

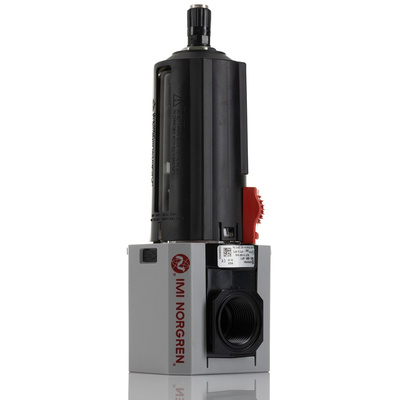

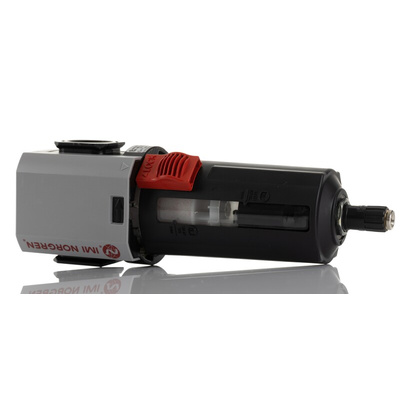

F84G-6GN-AP1, Norgren Excelon Plus series 5μm G 3/4 0.3bar to 10 bar Pneumatic Filter 4680L/min max with Automatic drain, Фильтр

IMI Norgren Pneumatic Filter, Polycarbonate Bowl, +60°C Maximum Operating Temperature - Excelon Plus Series - F84G-6GN-AP1

This pneumatic filter from IMI Norgren is a breath of fresh air for your system. It removes particles as small as 5μm from your airflow to prevent contaminants from damaging your components. An automatic drain makes maintenance straightforward. The lightweight polycarbonate bowl allows you to check the level of filtered impurities at a glance, while a double safety lock guards against unintentional opening. Thanks to its standard G3/4 connection port, you can fit this filter to your setup quickly without the need for specialist tools.

Features & Benefits

• Compact size of 73 (L) x 70 (W) x 205mm (D), so it fits easily in tight spaces
• Maximum flow rate of 4680l/min makes this a great option for high-speed pneumatic systems
• Operating temperature range between -10°C and +60°C means it's suitable for harsh industrial environments

Applications

• Analytics instrumentation
• Food processing
• Medical facilities

What's this filter made from?

The body of this filter is made from die-cast aluminium, combining strength with lightness to give you a robust component that places minimal mechanical stress on your system.
