F84G-6GN-AP3, Norgren Excelon Plus series 40μm G 3/4 0.3bar to 10 bar Pneumatic Filter 4680L/min max with Automatic drain, Фильтр

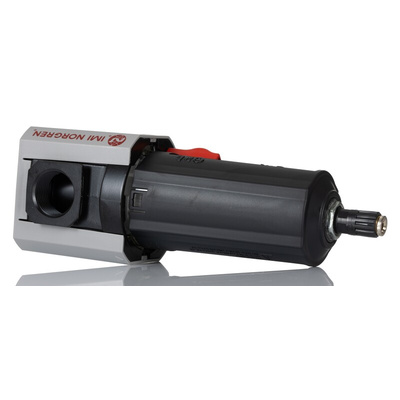

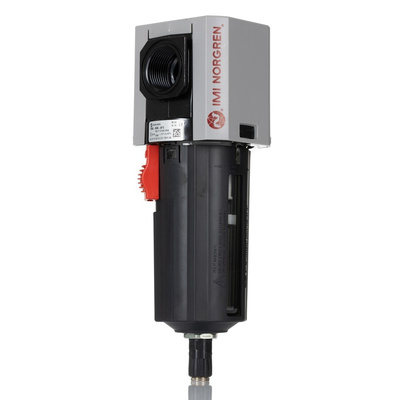

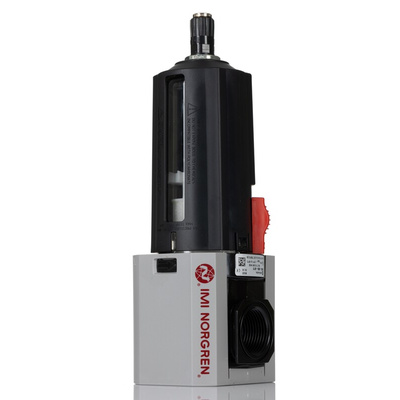

IMI Norgren Pneumatic Filter, 40μm Filtration Size, G3/4 Connection - Excelon Plus Series - F84G-6GN-AP3

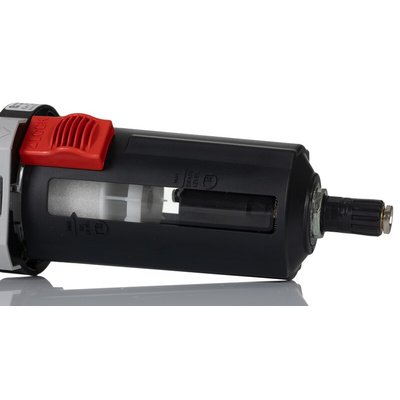

Are contaminants choking up the performance of your pressurised system? Grab this pneumatic filter from IMI Norgren to clean the air flowing through your network. Thanks to its 40μm filtration capability, it catches harmful particles that cause friction and damage, stretching the lifespan of your components. Moisture is caught in a polycarbonate bowl that resists scratches and impact, so you can rely on it in heavy-duty environments. As it's made from aluminium alloy and ABS, this device performs without a glitch in temperatures between -10°C and +60°C.

Features & Benefits

• G3/4 port connection for broad compatibility with standard fittings
• Wide operating pressure range between 0.3 and 10 bar for use with low-pressure systems
• Maximum flow rate of 4,680L/min means it keeps up with demanding applications

Applications

• Medical equipment
• Food and beverage processing
• Automated assembly and packaging lines
• Vehicle manufacture and maintenance

What type of drain does this pneumatic filter have?

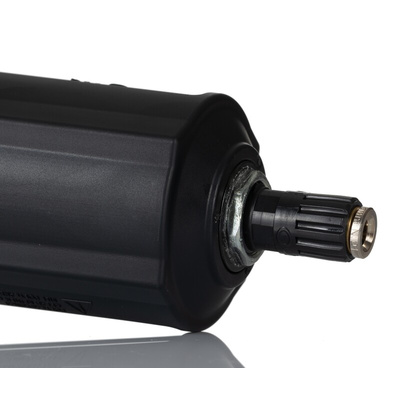

The unit has an automatic drain, which means it opens whenever the liquid or pressure reaches a specific point. This saves time and effort.

Can I combine this pneumatic filter with other components?

Yes, it's a handy modular unit that works along with devices such as pneumatic air lubricators.

Datasheet F84G-6GN-AP3

Norgren Excelon Plus Air Preparation Brochure

Instruction Sheet - Excelon Plus Series

Catalogue - World Class Motion and Fluid Control Solutions
