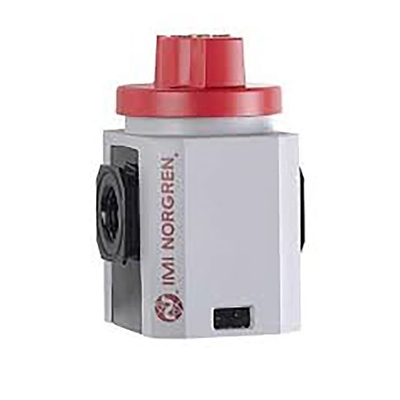

T84T-4GA-B1N, Norgren Locking Shut-Off Valve 3/2 Pneumatic Manual Control Valve Excelon Plus Series, G 1/2, 1/2in, III B, Клапан

IMI Norgren Pneumatic Shut-Off Valve, 108mm Height, 9,720L/min Maximum Flow Rate - Excelon Plus Series - T84T-4GA-B1N

You'll be blown away by this IMI Norgren pneumatic manual control valve's handling of demanding pressure management tasks. It supports flow rates up to 9,720L/min, so it's an ideal choice for high-intensity airflows. The unit's top-mounted knob opens with a quick quarter-turn to make controlling your system's pressure simple, while built-in NBR seals help prevent sneaky air leaks. There's no need to worry about safety, as the device can be secured with a padlock to prevent tampering.

• Connects with a G1/2 thread port, making it compatible with standard air-powered equipment
• Resilient die-cast aluminium housing resists corrosion for durability in damp settings
• Slim body dimensions of 70 (L) x 72 (W) x 108mm (H), so it's easy to squeeze into tight spaces
• Works between temperatures of -10°C and +60°C to suit demanding working conditions

Applications

• Drilling processes
• Food production
• Logistics industry

What operating pressures can I use this control valve in?

Reduced weight and size
A flexible modular system
Tamper proof options using built in padlock
Rotating safety shut-off valve

You can use this product in operating pressures up to 20 bar, so it stands up to the demands of intense applications.
