Artesyn Embedded Technologies Switching Power Supply, LPS42, 5V dc, 11A, 40W, 1 Output, 120 → 300 V dc, 85, Источник питания

Artesyn Embedded Technologies Embedded Switch Mode Power Supply

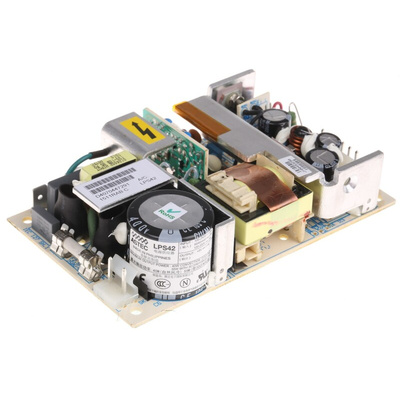

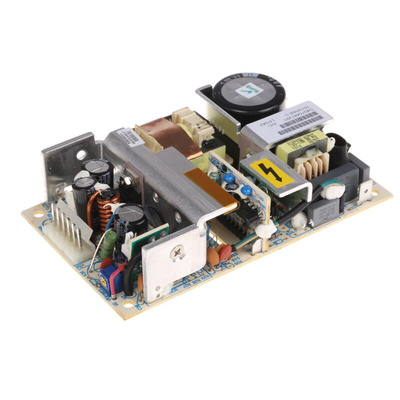

The Artesyn Embedded Technologies LPS42 series embedded switch-mode power supply is 40W, AC to DC plug-in device with a single output. It has a universal input supply voltage rating ranging between 85VAC and 264VAC or 120VDC and 300VDC.
Note:
Total of output loads must not exceed rating from a unit
Forced air cooling of 30CFM at 50°C increases the 25W output to 40W, the 40W to 55W and the 60W units to 80W, LPT80 units to 85W
Ratings are reduced with a cover kit

Features and Benefits

Adjustable main output (-5 +10%)
Chassis mount
Footprint is 3in and 5in and open PCB format
Frequency ranges between 47Hz and 440Hz
High peak ratings for 30 seconds
In-built EMI filter (Class B)
Manufacturer part numbers with a T suffix denote terminal block connection, all others feature Molex mating connectors (not provided)
Open frame package type
Output current is 19.5A at 24VDC
Overload protection
Overvoltage protection
Remote sensing on main output

Certifications

BABT
CSA certified
EN60950
EN60950
IEC950
NEMKO
UL approved
VDE

Approvals

VDE; UL Recognised; CSA Certified; NEMKO; BABT

Datasheet

LPS42 - Data Sheet
