Artesyn Embedded Technologies Switching Power Supply, LPT42, 5 V dc, ±12 V dc, 2.5 A, 5 A, 700 mA, 40W, Triple Output,, Источник питания

Artesyn Embedded Technologies Embedded Switch Mode Power Supply

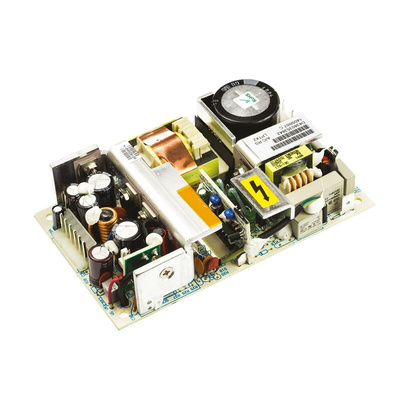

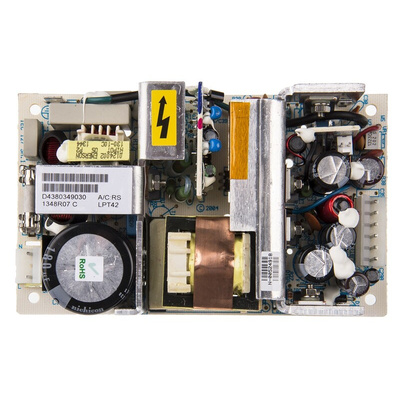

The Artesyn Embedded Technologies LPT42 series embedded switch-mode power supply is 40W, AC to DC plug-in device with triple output. It has a universal input supply voltage rating ranging between 85VAC and 264VAC or 120VDC and 300VDC.

Features and Benefits

Adjustable main output (-5 +10%)
Chassis mount
Footprint is 3in and 5in and open PCB format
Frequency ranges between 47Hz and 440Hz
High peak ratings for 30 seconds
In-built EMI filter (Class B)
Manufacturer part numbers with a T suffix denote terminal block connection, all others feature Molex mating connectors (not provided)
Open frame package type
Output currents are 2.5A at 5VDC, 5A at 12VDC and 700mA at -12VDC
Overload protection
Overvoltage protection
Remote sensing on the main output

Certifications

BABT
CSA certified
EN60950
EN60950
IEC950
NEMKO
UL approved
VDE

Approvals

VDE; UL Recognised; CSA Certified; NEMKO; BABT
