Artesyn Embedded Technologies Embedded Switch Mode Power Supply

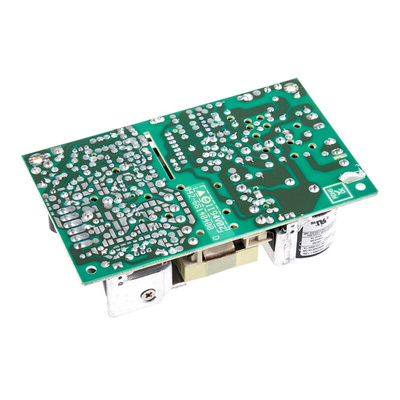

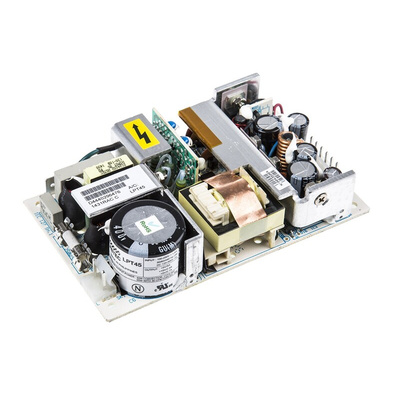

The Artesyn Embedded Technologies LPT series 40W triple output AC to DC embedded switch-mode power supply has an output voltage of 5VDC, 15VDC and -15VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC or 120VDC to 300VDC.
Note:
Total of output loads must not exceed the rating of the unit
Forced air-cooling of 30CFM at 50°C increases the 25W O/P to 40W, the 40W O/P to 55W and the 60W O/P units to 80W and LPT80 units to 85W. Its ratings are reduced with a cover kit
Features and Benefits
Output currents are 2.5A , 5A and 0.7A (forced air)
Output currents are 4A, 2A and 0.5A (convection cooling)
Frequency ranges from 47Hz to 440Hz
Manufacturer part numbers with a T suffix denote terminal block connection, all others feature Molex mating connectors (not provided)
In-built EMI filter (class B)
Overvoltage protection
Overload protection
Footprint is 3in and 5in and open PCB format
Remote sense on main output
Adjustable main output (-5 +10%)
Open frame package type
Chassis mount
High peak ratings for 30 seconds
Certifications
EN60950
VDE
UL approved
CSA certified
NEMKO
BABT
IEC950
EN60950
Approvals
VDE; UL Recognised; CSA Certified; NEMKO; BABT
