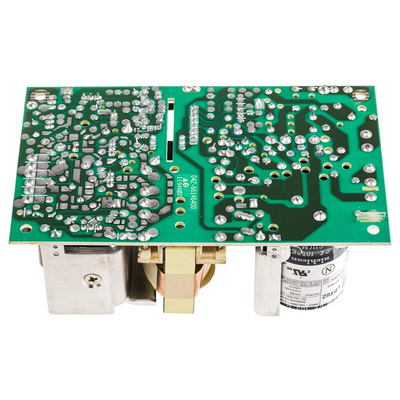

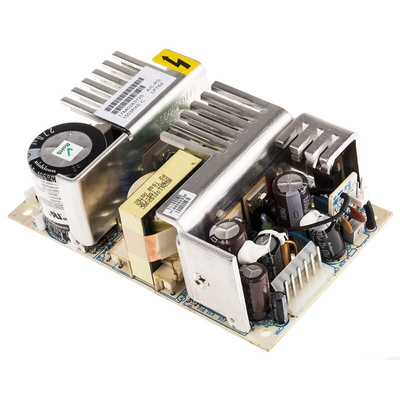

Artesyn Embedded Technologies Switching Power Supply, LPT62, 5 V dc, ±12 V dc, 1 A, 3.5 A, 8 A, 60W, Triple Output, 120, Источник питания

Artesyn Embedded Technologies Embedded Switch Mode Power Supply

The Artesyn Embedded Technologies LPT series 60W triple output AC to DC embedded switch-mode power supply has an output voltage of 5VDC, 12VDC and -12VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC or 120VDC to 300VDC.
Note:
Total of output loads must not exceed the rating of the unit
Forced air-cooling of 30CFM at 50°C increases the 25W O/P to 40W, the 40W O/P to 55W and the 60W O/P units to 80W and LPT80 units to 85W. Its ratings are reduced with a cover kit

Features and Benefits

Output currents are 1A , 3.5A and 8A(forced air)
Output currents are 0.7A,3A and 7A(convection cooling)
Frequency ranges from 47Hz to 440Hz
Manufacturer part numbers with a T suffix denote terminal block connection, all others feature Molex mating connectors (not provided)
In-built EMI filter (class B)
Overvoltage protection
Overload protection
Footprint is 3in and 5in and open PCB format
Remote sense on main output
Adjustable main output (-5 +10%)
Open frame package type
Chassis mount
High peak ratings for 30 seconds

Certifications

EN60950
VDE
UL approved
CSA certified
NEMKO
BABT
IEC950
EN60950

Approvals

VDE; UL Recognised; CSA Certified; NEMKO; BABT

LPT62 - Data Sheet
