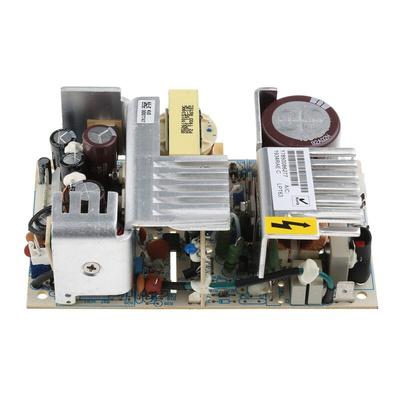

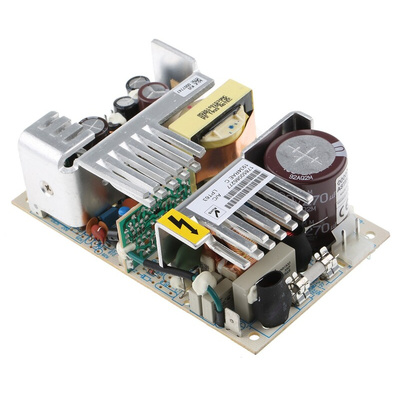

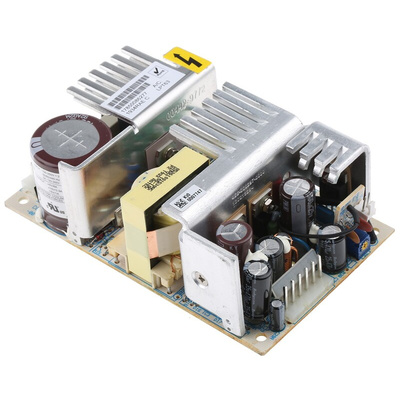

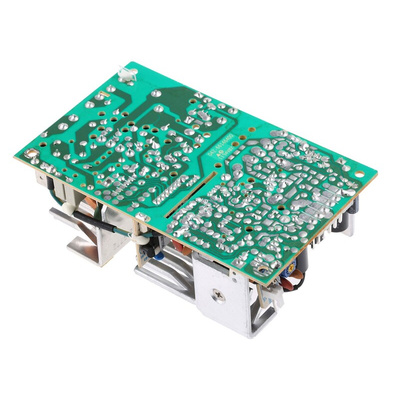

Artesyn Embedded Technologies Switching Power Supply, LPT63, 5 V dc, ±15 V dc, 1A, 60W, Triple Output, 120 → 300, Источник питания

Artesyn Embedded Technologies Embedded Switch Mode Power Supply

The Artesyn Embedded Technologies LPT series 60W triple output AC to DC embedded switch-mode power supply has an output voltage of 5VDC, 15VDC and -15VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC or 120VDC to 300VDC.
Note:
Total of output loads must not exceed the rating of the unit. Figures in the brackets indicate its overall size with the cover.

Features and Benefits

Output currents are 1A , 3.5A and 8A(forced air)
Frequency ranges from 47Hz to 440Hz(convection cooling)
Manufacturer part numbers with a T suffix denote terminal block connection, all others feature Molex mating connectors (not provided)
In-built EMI filter (class B)
Overvoltage protection
Overload protection
Footprint is 3in and 5in and open PCB format
Remote sense on main output
Adjustable main output (-5 +10%)
Open frame package type
Chassis mount
High peak ratings for 30 seconds

Certifications

VDE0750/EN60601-1
UL2901
CSA 22.2 NO 601.1

Approvals

VDE; UL Recognised; CSA Certified; NEMKO; BABT

LPT63 -Data Sheet
