THN 20-4825WI, TRACOPOWER THN 20WI DC-DC Converter, 48V dc/ ±417mA Output, 18 → 75 V dc Input, 20W, Through Hole, +75°C Max, Преобразователь

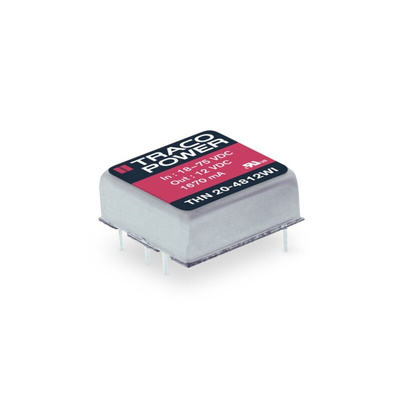

The THN 20WI series models are high performance dc-dc converters. They achieve 20 Watt output power and come in a small size metal casing (1.0” x 1.0” x 0.4”). The models feature an ultra-wide 4:1 input voltage range while the output voltages are precisely regulated even under no load conditions. Highest efficiency of up to 90% makes this product very reliable and applicable in temperature ranges of up to 85°C. The low no-load input current characteristics and the remote On/Off control make these converters an ideal solution for battery operated systems. Typical applications are in mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where space on the PCB is critical.

Ultra compact size: 1.0” x 1.0” x 0.4”
Shielded metal casing with isolated baseplate
Ultrawide 4:1 input voltage ranges
Very high efficiency up to 90%
Remote On/Off control
No minimum load required

Datasheet
