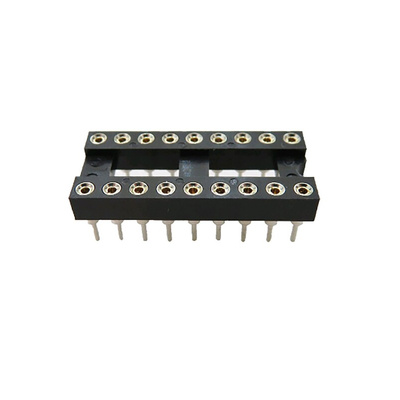

RS PRO 2.54mm Pitch 18 Way, Through Hole Turned Pin IC Dip Socket, 3A, Гнездо

RS PRO Screw Machine IC Socket

The RS PRO screw machine IC pin socket has a pitch of 2.54mm, length of 22.86mm, a width of 10.16mm and depth of 3mm. It has a current rating of 3A and voltage rating of 60VAC/VDC. The socket features solid, precision turned sleeves with a closed bottom design to eliminate flux intrusion and solder wicking during soldering. The stamped spring copper insert provides an excellent connection and allows repeated insertion and withdrawals. The insulators are moulded of high temp thermoplastic. The inner contact has gold flash over nickel plating and the outer sleeve has tin over nickel plating.

Features and Benefits

• Anti-solder wicking design
• Clip material beryllium copper
• High pressure contacts
• Machine insertable
• Number of contacts 18
• Operating temperature for gold plated ranges between -55 °C and 105 °C
• Operating temperature for tin plated ranges between -40 °C and 105 °C
• Pin material brass
• Precision stamped internal spring contacts
• Through hole mounting type

Certifications

• UL94V-0 approved

RS PRO Datasheet
