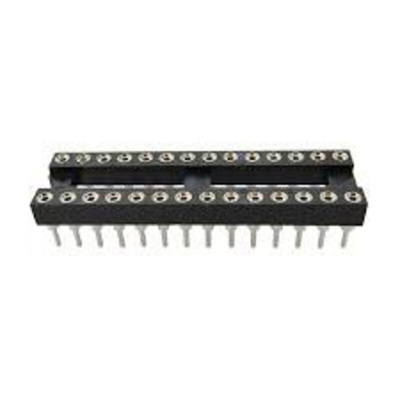

RS PRO 2.54mm Pitch Vertical 28 Way, Through Hole Turned Pin IC Dip Socket, 3A

RS PRO Vertical 28 Way Machine Pin Socket

RS PRO introduces the series of machine pin sockets which offers a full range of exceptional quality, highly reliable DIP package sockets, including this 28 way through hole turned pin DIP socket, also known as DIL socket. RS PRO has designed these sockets to feature solid precision turned sleeves with a closed bottom design eliminating flux intrusion and solder wicking during soldering. Constructed with a stamped spring copper insert, this provides an excellent connection and allows repeated insertion and withdrawals. With Gold plated inner contact and tin-plated outer sleeve this socket is a Hi-Temp insulator for Hi-Temp soldering processes of up 260°C. Our insulators are molded of UL94V-0 high temp thermoplastic.

Features and Benefits:

• These IC sockets have been designed with high-pressure contacts
• 28 way through pin sockets have precision stamped internal spring contacts in order to give an excellent connection and make it more durable for repeated usage
• Anti-Solder wicking design to make your experience with these IC sockets easy whilst removing flux intrusion and protecting any delicate components underneath
• Machine insertable making these connectors suitable for production line work
• Dual row components remove the limitation of IC sockets by taking away the restriction of the number of leads available
• Molded from high temp thermoplastic to give an extra layer of protection to this component

What is a DIL socket?

A DIL socket, also known as a DIP socket, means a dual in line package which is an electronic component with two parallel rows of pins that can be through-hole mounted to a printed circuit board or inserted directly into a socket.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
