RS PRO 6 Pole Miniature Din Socket, 1A, 100 V ac, Female, Panel Mount, Разъем

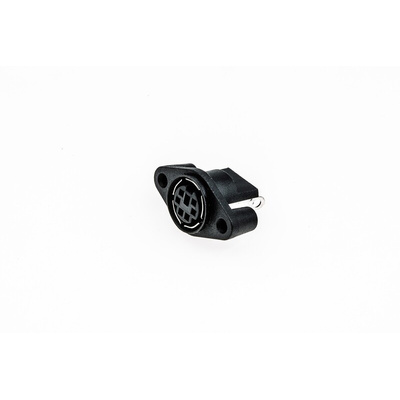

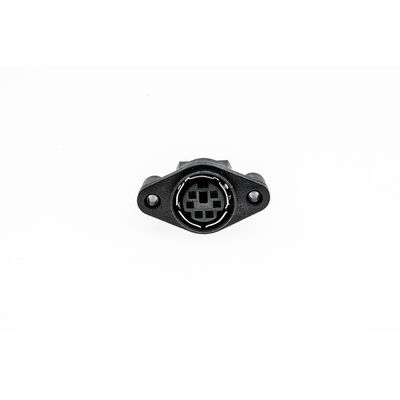

RS PRO 6 Pole Miniature DIN Socket, 1 A, 100 V AC

This mini-DIN connector from RS PRO is a high-quality electrical connector for communication and computer applications. Its compact dimensions and high contact density make it a good choice for transmitting shielded data signals.
The connector is housed in a PBT (polybutylene terephthalate) material, which is both impact-resistant and flame-retardant. This material also protects the wire against oxygen, moisture and mechanical damage, so it can withstand demanding environments. You can terminate the wire by crimping it, which keeps the cable strong even at the termination point.
Thanks to the tin-plated phosphor bronze contacts, the connector offers good electrical conductivity for a reliable connection. You'll often find this type of connector used for S-video connections, keyboards and computer mice.

Features and Benefits

• Straight body orientation
• Miniature connector size
• Phosphor bronze contact material
• Tin contact plating
• Current rating of 1 A
• Female gender
• PBT (polybutylene terephthalate) housing material
• Panel mounting type
• Six contacts
• Shielded
• Crimp termination method
• Voltage rating of 100 V AC

RS Pro Datasheet
