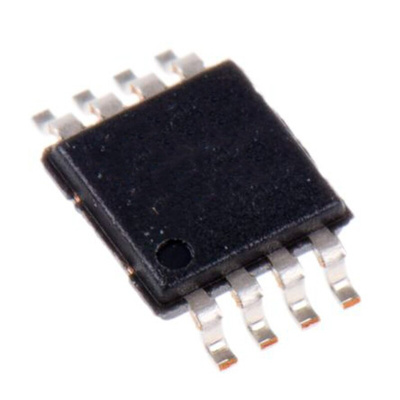

AD8002ARMZ Analog Devices, Current Feedback, Op Amp, 600MHz 10 MHz, 8-Pin MSOP, Операционный усилитель

Excellent video specifications (RL = 150 Ω, G = +2)
Gain flatness: 0.1 dB to 60 MHz
Differential gain error: 0.01%
Differential phase error: 0.02°
Low power
Maximum power supply current (50 mW): 5.0 mA/amp
High speed and fast settling
−3 dB bandwidth (G = +1): 600 MHz
−3 dB bandwidth (G = +2): 500 MHz
Slew rate: 1200 V/μs
Settling time to 0.1%: 16 ns
Low distortion
THD at fC = 5 MHz: −65 dBc
Third-order intercept at f1 = 10 MHz: 33 dBm
SFDR at f = 5 MHz: −66 dB
Crosstalk at f = 5 MHz: −60 dB
High output drive
Over 70 mA output current
Drives up to eight back terminated 75 Ω loads (four loads/side) while maintaining good differential gain/phase performance (0.01%/0.17°)
Available in 8-lead SOIC and MSOP packages
Applications
Analog-to-digital drivers
Video line drivers
Differential line drivers
Professional cameras
Video switchers
Special effects
RF receivers

Datasheet AD8002ARMZ
