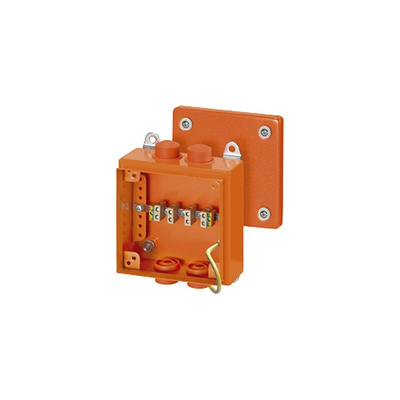

FK9025, HENSEL Junction Box, IP66, 150mm x 89mm x 150mm

Cable junction box ø 0.8 mm / 0.5-1.5 mm², cu
Connection box ø 0.8 mm / 0.5-4 mm², cu
5-pole per pole 4 x ø 0.8 mm / 0.5 mm² sol, 4 x 1.5 mm² sol, 2 x 2.5 mm² sol, 2 x 4 mm² sol
Connecting terminal made from ceramic with resistance to high temperatures
Mounted grommets 4 edkf 32,sealing range: ø 8-23 mm, closed
Mounted using exterior wall fixings,
Bore hole 8.2 mm(for dowels refer to technical data)
For normal environment and protected outdoor
Colour: orange, ral 2003

Datasheet FK9025
