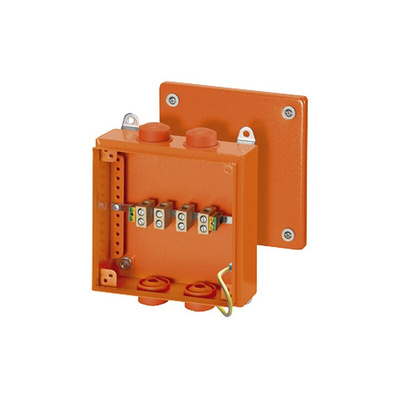

FK9255, HENSEL Orange Steel Junction Box, IP66, 5 Terminals, 200 x 200 x 89mm

Cable junction box 1.5-6 mm², cu
Connection box 1.5-16 mm², cu
5-pole per pole 4 x 1.5 mm² sol, 4 x 2.5 mm² sol, 4 x 4 mm² sol, 4 x 6 mm² sol, 2 x 10 mm² sol, 2 x 16 mm² r (remove cable protection)
Connecting terminal made from ceramic with resistance to high temperatures
Mounted grommets 4 edkf 40,sealing range ø 11-30 mm, closed
Mounted using exterior wall fixings,
Bore hole 8.2 mm(for dowels refer to technical data)
For normal environment and protected outdoor
Colour: orange, ral 2003

Datasheet FK9255
