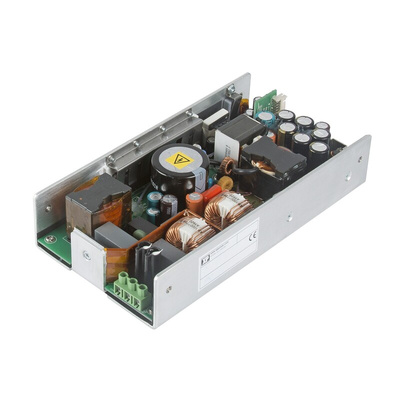

CMP250PS24, XP Power, 250 (Convection) W, 500 (Peak) W Embedded Switch Mode Power Supply SMPS, 24V dc, U Bracket, Medical Approved, Источник питания

The universal AC input CMP250 provides up to 500 W peak power and 250 W convection-cooled in a 7.5” x 4” package, over the temperature range -40 °C to +50 °C with derating to +70 °C. With a feature set including constant current overload characteristics, a 5 V/1.5 A standby output, 12 V/0.6 A auxiliary, AC OK signal, inhibit, current share the CMP250 is ideal for motors and other electromechanical loads, without the need for fan cooling, in both industrial and medical applications.

250 W Convection-cooled Rating
500 W Peak Power
U Channel 4”x 7.5” Package
80 VAC to 300 VAC Input
5 V/1.5A Standby & 12 V/0.6 A Auxiliary
AC OK Signal, Inhibit
Current Share
3 Year Warranty

Datasheet CMP250PS24
