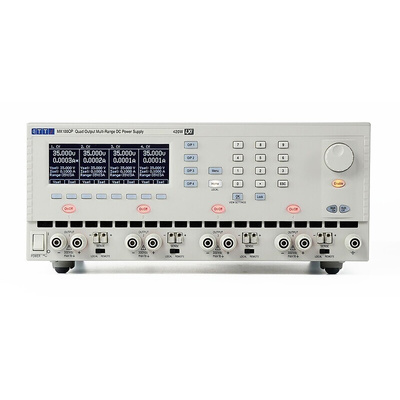

MX100QP, Aim-TTi MX Series Digital Bench Power Supply, 0 → 35V, 0 → 3A, 4-Output, 420W, Блок питания

Aim-TTi Power Supply

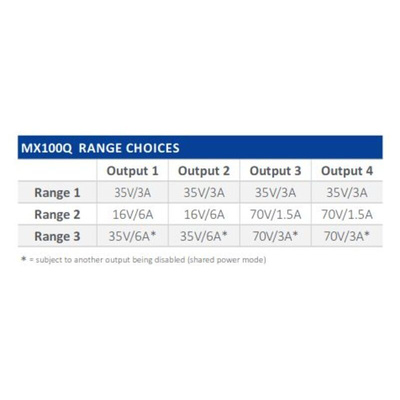

The MX series uses mixed mode regulation to provide up to 420W of power split across up to four outputs, this series differs from most other multi-output power supplies in offering full capabilities on all outputs. Outputs can also be combined internally to provide up to 210 watts of power as either 35V/6A or 70V/3A from a single output. MX-P models have LAN /LXi, USB and RS232 as standard.
For an optional GPIB module see stock number 144-5481.

Features and Benefits

• Range switching to give variable current-voltage combinations
• Graphic LCD with simultaneous display of outputs and settings for each channel
• Instant single as well as multiple channels ON/OFF control
• Instant access for current and voltage setting of an output
• High setting resolution of up to 1mV for voltage and 0.1mA for current
• Overvoltage and over current protection
• Switchable remote sensing
• Up to 250 settings memories for individual or multiple outputs
• Rack-mountable

Applications

• Laboratories
• Educational institutions
• Industrial applications
• Production and manufacturing units
• Workshops

Supplied with
type":"Supplied with",

Test Bridge Logging and sequencing software

Datasheet MX100QP
