236947 PXK-B13/1N/003-A, Eaton RCBO, 13A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type B, PXK Range, Автоматический выключатель

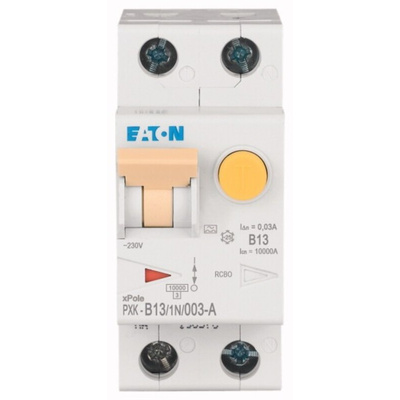

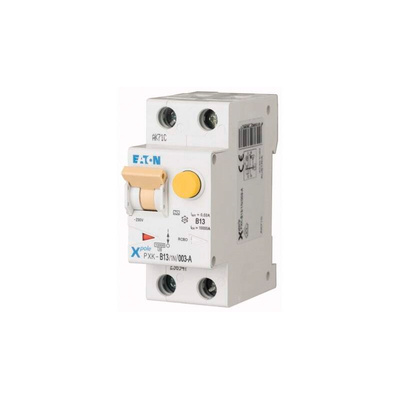

Eaton Residual Current Circuit Breaker With Overcurrent Protection, 1 Pole - PXK-B Series - PXK-B13/1N/003-A

Protect your electrical installations from defects with this Eaton RCBO (residual current breaker with overcurrent protection). Its combined residual current device and miniature circuit breaker functionality guarantees a swift disconnect if any form of current malfunction is detected. This type-B RCBO can be used as a safety feature in installations with high-frequency AC current up to 13A. Use it to regulate consumer units in both domestic and commercial applications.

• Conveniently placed ON/OFF switch for easy activation
• High-rated insulation voltage of 440V for optimal use in a range of environments
• 30mA tripping threshold for reliable protection against electric shock

What electrical devices can I install this type-B RCBO in?

You can use this device as an effective safeguard in a range of devices, including ventilation machinery, charging stations, lifts and escalators.

How do I install this Eaton RCBO?

You'll need compatible line and neutral wires and a screwdriver to install this RCBO. Attach the wire to the appropriate terminal in the consumer unit and secure it with a screwdriver. Follow this by connecting the earth wire to the bar. Finish by testing to ensure the circuit breaker is working properly.

Note

Eaton formerly known as Moeller

Datasheet 236947
