6EP3321-7SB00-0AX0, Siemens SITOP PSU6200 Switch Mode DIN Rail Power Supply, 85 → 264V ac ac, dc Input, 12V dc dc Output, 2A Output,, Блок питания

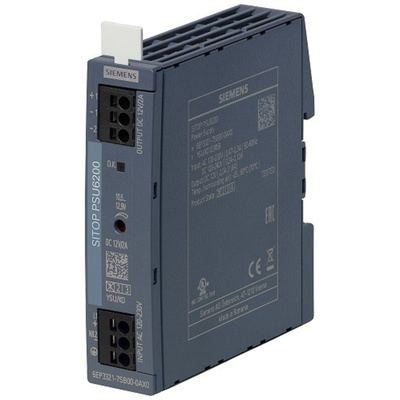

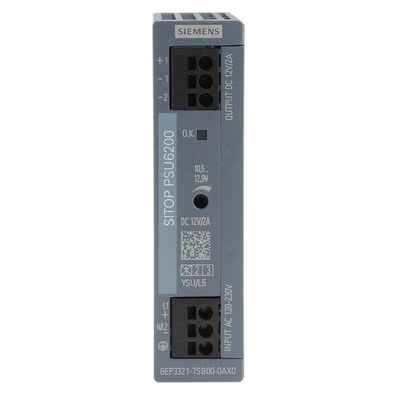

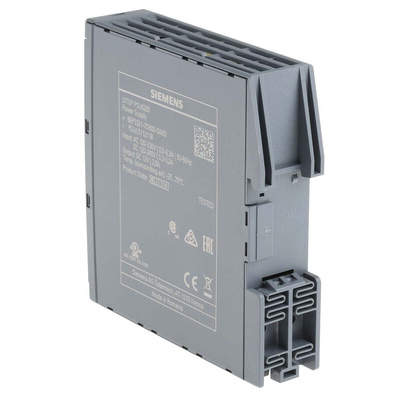

Siemens Switch-Mode DIN Rail Power Supply, 12V DC Output, 24W Power Rating - SITOP PSU6200 Series - 6EP3321-7SB00-0AX0

Ensure the efficient running of your equipment with this switch-mode DIN rail power supply from Siemens. It's a one-phase mini electric power converter that's ideal for low-performance-range applications. The unit has a wide scope of AC (alternating current) inputs from 85 to 264V and a maximum output voltage of 12V DC (direct current), which enables plug-in terminals to easily support electrical connections. Power losses are very low, even when the power supply is idle, which makes it perfect for machinery and plants that are often in standby modes. You can use this unit for applications like ITE (information technology equipment), control boxes and small control cabinets.

• Compact dimensions of 25 (W) x 100 (H) x 88mm (D) for easy installation in confined spaces
• Operating temperature range of -25°C to +70°C for use in heavy-duty indoor and outdoor environments
• Short-circuit protection prevents damage to the unit and other equipment by regulating incoming and outgoing voltage differences

How can I see if this power supply is working or not?

This switch mode power supply from Siemens has an LED (light-emitting diode) status indicator, so it's easy to determine the status of the device and respond to any possible faults.

Datasheet 6EP3321-7SB00-0AX0

Brochure

Brochure - SITOP Power Supply

Catalogue - SITOP Power Supply

Instruction Sheet - SITOP PSU6200
