R1DX-0505-Tray, Recom R1DX DC-DC Converter, ±5V dc/ ±100mA Output, 4.5 → 5.5 V dc Input, 1W, Surface Mount, +95°C Max Temp -40°C, Преобразователь

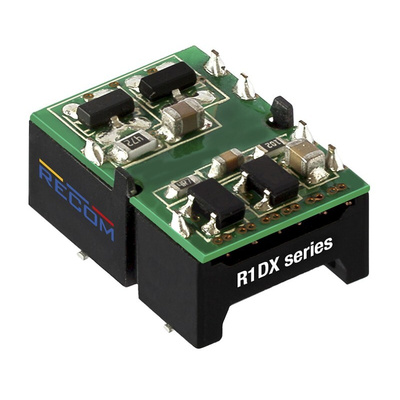

RECOM DC-DC Converter, 78% Efficiency, Plastic Case - R1DX Series - R1DX-0505-Tray

Keep your components humming along steadily with this DC-DC converter from RECOM. It cleans and stabilises supply signals ranging between 4.5 and 5.5V to deliver a ±5V dual output that simplifies the wiring needs of your setup. For extra safety, it has a 1kV isolation barrier to reduce the risk of damage from sudden power surges. The unit's plastic casing handles wear and impact without breaking a sweat, making it the right choice for harsh settings. Surface-mounting technology means installation is done in a flash.

Features & Benefits

• Efficiency of 78% ensures high productivity and low heat production
• Stops burning in 10 seconds or less in the event of a fire, reducing the spread of flames
• Performs reliably in a temperature range between -40°C and +95°C, making it safe for use in demanding conditions
• Power rating of 1W, suitable for low-power applications

Applications

• Consumer electronics
• Robotics systems
• Gaming consoles

What size is this DC-DC converter?

This unit has compact dimensions of 15.24 (L) x 11.1 (W) x 8mm (H), so it's easy to fit into setups where space is tight.

R1DX Series DC_DC Converter Datasheet
