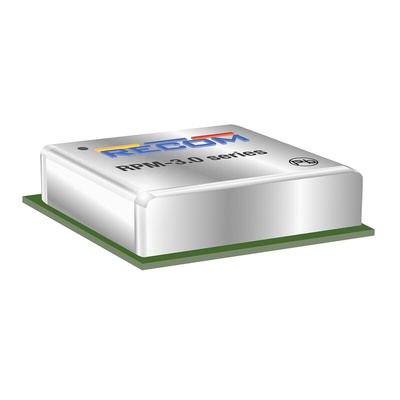

RPM3.3-3.0-CT, Recom RPM-3.0 DC-DC Converter, 3.3V dc/ 3A Output, 3 → 17 V dc Input, 3.3W, Surface Mount, +100°C Max Temp -40°C, Преобразователь

The RPM-3.0 series is a 3A non-isolated switching regulator power module with a full set of features including adjustable output, sequencing, soft-start control, on/off control and power good signals. The ultra-compact module has a profile of only 3.75mm, but with an efficiency of up to 97%, the device can operate at full load in ambient temperatures as high as +105°C without forced air cooling. The package is complete with 6-sided shielding for optimal EMC performance and excellent heat management.

High power density (L*W*H = 12.19*12.19*3.75)
Wide operating temperature -40°C to +105°C at full load
Efficiency up to 97%, no need for heatsinks
6-sided shielding
Thermally and EMI enhanced 25 pad LGA package
Compact DOSA-compatible footprint
Low profile

Datasheet - RPM3.3-3.0-CT
