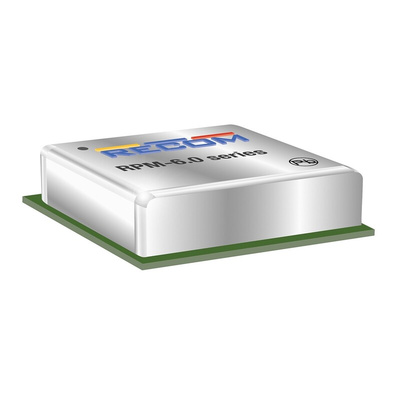

RPM3.3-6.0-CT, Recom RPM-6.0 DC-DC Converter, 3.3V dc/ 6A Output, 4 → 15 V dc Input, 3.3W, Surface Mount, +85°C Max Temp -40°C, Преобразователь

RECOM DC-DC Converter, ±3% Line Regulation, 88 to 97% Efficiency - RPM-6.0 Series - RPM3.3-6.0-CT

Looking for a small power conversion solution that's big on efficiency? Pick this DC-DC converter from RECOM. It steps down inputs between 4 and 15V DC to a steady 3.3V DC output to energise your low-voltage applications. The compact unit has dimensions of 12.19mm (L) x 12.19 (W) x 3.75mm (H), so it's a sure fit for crowded panels and PCBs. An efficiency rating between 88 and 97% indicates little energy is wasted as heat. This means the converter works like a charm at full load in temperatures up to +90°C without the need for additional cooling.

Features & Benefits

• Package with 6-sided shielding for optimal EMC performance
• Weighs just 1.1g so it won't be a drag on your system
• ±3% line regulation assures you the unit maintains its output voltage regardless of input fluctuations

Applications

• Consumer electronics
• Telecommunications networks
• Industrial control panels
• Commercial and domestic appliances

Does this DC-DC converter have built-in protection against electrical faults?

Yes, the unit features overcurrent, over-temperature and short-circuit protection to cover all the bases should something go wrong.

How do I mount this DC-DC converter?

Simply solder this surface-mounting component onto your PCB.

Datasheet - RPM3.3-6.0-CT
