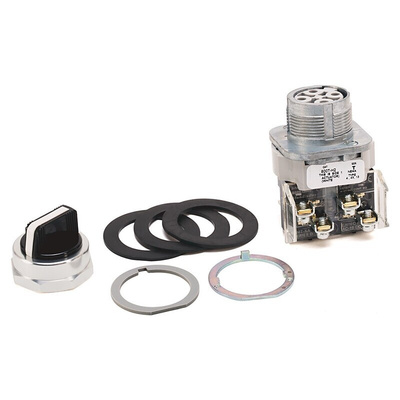

800T-H2A, Allen Bradley Selector Switch - (SPDT) 30mm Cutout Diameter 2 Positions

Allen Bradley Selector Switch, 2 Positions, 10A Maximum Current - 800T-H2A

To close, open or change the connections in a circuit, use this manually operated selector switch from Rockwell Automation's Allen Bradley range. The switch has no return spring, so its pole won't move until the knob is turned, giving you complete control over the switching process. A maximum operating voltage of 300V AC means it can be used to control industrial motors and heavy machinery. To protect you from electric shocks caused by leakage current, this switch has insulated rings placed on both sides of the panel.

• Operating temperature range between -40°C and +55°C for use in harsh conditions
• Maximum operating current of 80A for use with heavy-duty applications
• Metal-type design prevents internal parts from melting due to high current flow

Standards and Certifications

• UL 508
• CCC
• CSA Certified
• CE Marked

30.5mm Type 4/13 2 Pos Sel. Switch-Non-Illum., White, Std. Knob Maint., 1 NO-1 NC

How do I install this switch?

To mount this switch, start by drilling a 30mm hole in your panel. Install the insulation and lock rings on both sides of the panel before inserting the unit through the hole. Finally, use the female thread on the knob to secure the switch.
