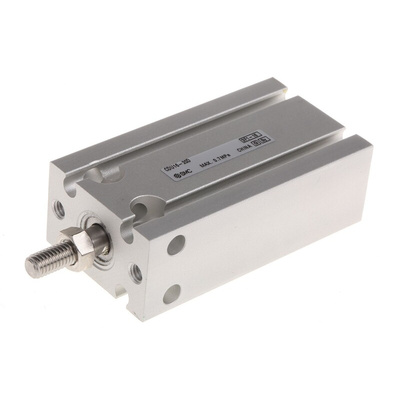

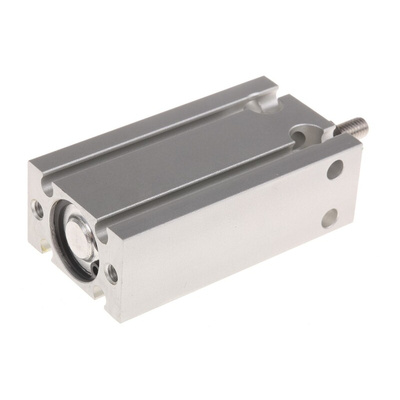

CDU16-20D, SMC Pneumatic Multi-Mount Cylinder CU Series, Double Action, Single Rod, 16mm Bore, 20mm stroke, Пневмоцилиндр

1834573
Номер производителя: CDU16-20DПроизводитель: SMC
Цена за шт.
17547.00 руб. (С НДС) *
Количество 5+
Цена 17013.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

CU Series Cylinders

The series CU free mount cylinder saves space and allows direct and precise mounting, Options include auto-switch capabilities, free mount choices, recessed switch mounting grooves, non-rotating rod, single and double acting and rubber bumpers standard.

Maximum operating pressure 7 bar, 10.5 bar proof pressure
Ambient and fluid temperature 5°C to 60°C
Lubrication not required
Rubber cushion to both sides
Stroke allowance +1.0mm
Port size M5, except 32Ø which is Rc(PT) 1//8 in.

CDU 10 - 32mm Diameter

A range of double acting, free-mount rectangular cylinders, with piston rod operation. Available as either standard or non-rotating. Rectangular design allows for precise and direct mounting. Each cylinder has a magnetic piston as standard.

Техническая спецификация
pdfFree Mount Cylinder Series CU Data Sheet
pdfContains SVHC - Bis(2-ethylhexyl)phthalate (DEHP) - CAS No. 117-81-7
Абсолютное максимальное давление:
1.05МПа
Вес:
68гр
Высота:
32мм
Давление - максимальное рабочее:
0.7 МПа
Действие:
Double
Длина:
66мм
Отверстие:
16мм
Порт подключения:
M5 x 0.8
Производитель - серия:
CU
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-10°C
Размеры:
66 x 20 x 32мм
Стержни:
Single
Тип демпфирования:
Каучук
Ход:
20мм
Ширина:
20мм
