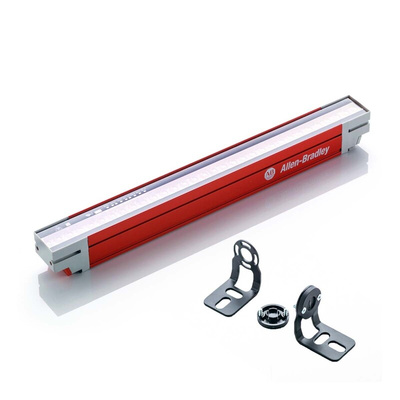

450L-E4HL1650YD, Allen Bradley Guardmaster 450L-E Light Curtain Transceiver, 30mm Resolution, Световые завесы

1835262
Номер производителя: 450L-E4HL1650YDПроизводитель: Allen Bradley Guardmaster
Цена за шт.
595521.00 руб. (С НДС) *

Срок поставки: 7-9 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Our Bulletin 450L GuardShield™ POC safety light curtains are unlike traditional safety light curtains, which are based on separate transmitter and receiver units. Patented technology allows each transceiver to be used as a transmitter or receiver via an innovative plug-in module. The 450L-B is the basic model with on/off functionality. The advanced 450L-E model features integrated laser alignment, cascading, blanking, and integrated muting.

Includes patented technology that allows each transceiver to be used either as a transmitter or receiver via an innovative plug-in module
Features an active protective field that senses over the entire length of a transceiver
Offers a wide range of protection heights 150…1950 mm (5.9…76.7 in.) in increments of 150 mm (0.5 ft)
Features a compact housing design 30 x 30 mm (1.18 x 1.18 in.)
Provides easy configuration of the start mode, external device monitoring (EDM), and scanning range by DIP switches on the plug-in modules

Техническая спецификация
pdfDatasheet_1 450L-E4HL1650YD
PL EN ISO 13849-1:
e
Диапазон:
GuardShield
Длина:
30мм
Защитная высота:
1650мм
Максимальное время отклика:
13 мс
Максимальное расстояние сканирования:
16.2м
Минимальное расстояние сканирования:
0.9м
Напряжение питания:
24 В пост. тока
Особенности:
Muting, Blanking, Start Mode, External Device Monitoring (EDM)
Применение:
Electronic Fences, Forming Operations, Presses, Robot Cells, Workstations
Размеры:
30 x 30 мм
Разрешение луча:
30мм
Серия:
450L-E
Тип клеммы:
M12 Connector Plug
Тип компонента:
Трансивер
Ширина:
30мм
