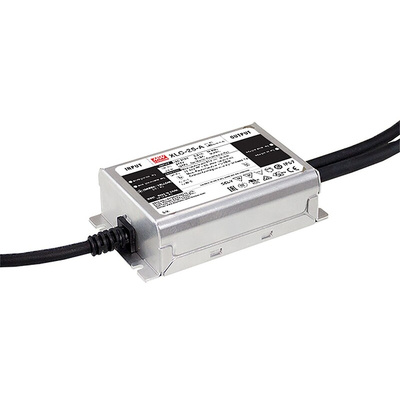

XLG-25-AB, MEAN WELL LED Driver, 22 → 54V Output, 25W Output, 700mA Output, Constant Current Dimmable, Драйвер светодиодов

XLG-25 Series is a 25W AC/DC LED driver featuring the constant power mode output. XLG-25 operates from 100∼305VAC. The High Efficiency up to 88%, The entire Series is able to operate between -40°C ∼ 85°C wide case temperature range with air convection. The design of metal housing allows this series to fit both indoor and applications. XLG-25 is Equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED Lighting System.

Constant Power mode output
Metal housing design with functional Ground
Built-in active PFC Function
Class 2 Power Unit
No Load/Standby Power Consumption <0.5W
For Indoor or Outdoor installations
Function Options: Output Adjustable via Potentiometer 3in 1 Dimming (dim-to-off)
Typical Lifetime>50000 hours
5 Years Warranty
Applications
LED Street Lighting
LED Architectural Lighting
LED bay Lighting
LED Flood Lighting

Datasheet XLG-25-AB
