RS PRO Jaw to Jaw Stainless Steel Rigging Screw, M8 Thread, Стяжной винт

RS PRO Rigging Screw, Jaw to Jaw, M8

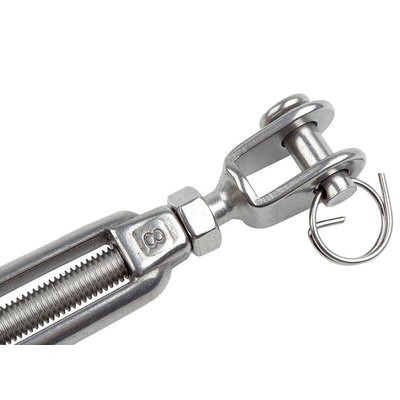

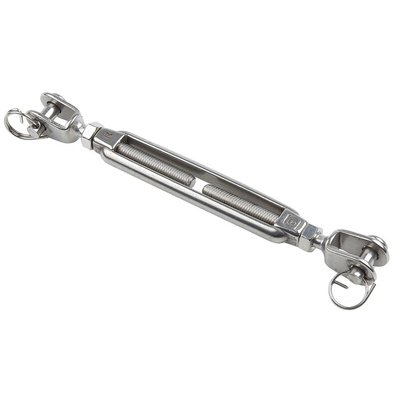

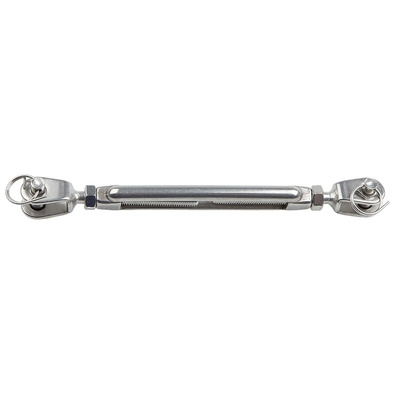

If you need to fasten rigging safely, use this RS PRO rigging screw. The part is manufactured from durable stainless steel and features jaw fittings on both ends, which provides a secure connection point for tensioned ropes.

The screw has an open length measurement of 240 mm, a close length of 165 mm and an eye diameter and thread size of 8 mm. A locking pin firmly holds each jaw in place and the screw's rotating body allows you to increase or decrease the length as required. The part has a total weight of 160 g.

This type of rigging screw is useful for holding ropes at a specific tension. You'll commonly see them used on suspension bridges, as part of a boat's rigging system and situations where two loads need tightening.

Features and Benefits

• Jaw-to-jaw stainless-steel rigging screw
• Electro-polished finish
• End A jaw fitting
• End B jaw fitting
• Closed length of 165 mm
• Open length of 240 mm
• Eye diameter of 8 mm
• Thread size of M8

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

This is not for lifting applications.

RS PRO Datasheet
