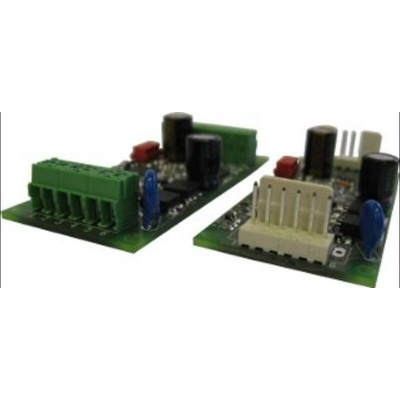

Electromen - EM-324C DC Motor 2Q Drive 12-24 V DC, 4 A

The EM-324C is a full bridge brushed DC motor drive, the solid state power stage operates with high efficiency using FET-transistors.
The drive has adjustable acceleration and deceleration ramps facilitating smooth starts and stops.
Adjustable current limit protects motor against overcurrent situations and it can also be used as an end-stop on current trip.
Control inputs are present for basic forward, backward and stop commands, as well as limit switch inputs to define end stops.
This device has also two settable speeds, this can be activated by dedicated input. The same input can be used for analogue speed control signal 0-5V.
Fault output will indicate a current trip situation, it can also be used to shut the down drive with an external signal, if so desired.
There are two selectable control modes, in continuous mode the motor runs as long as the control is active, in impulse mode it will operate from a momentary command.
Special settings are also available for start-up kick and auto reverse.
For parameters setting there are 3 options: EM-236 interface unit, EM-268 with EmenTool-Lite PC-program and EM-326 with EmenTool-App application for smartphone.

Features and Benefits

Compact with high current output
Suits 5-50w motor
Current limit 0.1-20A (30A at start up)
Zero current limit
Overvoltage brake
Speed setting
Flexible control inputs
Impulse / continuous mode
DIN rail mountable
Programmable parameters to suit application
DIN rail mountable
2kHz / 16kHz PWM frequency
Molex connector option available
