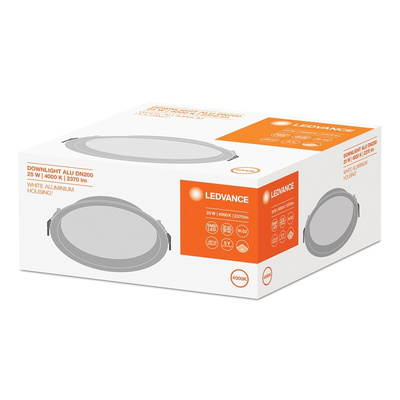

4058075091511, LEDVANCE LED Downlight, 220 → 240 V, 215 x 61 mm, 25 W

Ledvance DL ALU Round DN 200 Aluminium Downlight.

The DN 200 Aluminium Downlight is a round, neat, compact and functional downlight. The body is aluminium, and the cover is made from Polymethylmethacrylate (PMMA), providing you with quick, easy and simple connection with an external LED driver. The downlight is energy efficient giving you a 60% saving in comparison to other CFL lamps plus IP44 protection. The downlight is recessed, and ceiling mounted.

Features and Benefits.

•DL ALU DN 200 Downlight.
•Body is Aluminium.
•Cover made from Polymethylmethacrylate (PMMA).
•Round
•Neat
•Compact
•Functional.
•60% Energy saving.
•Homogenous light.
•High luminous efficacy.
•Easy installation.
•Fast connection.
•External LED driver.

DL ALU DN 200 4000 K WT Features.

•Output current 27 to 42 mA.
•Luminous flux 2370 lm.
•Luminous efficacy 95 lm/W.
•Light colour is cool white.
•Beam angle 100°.
•Weight 600 g.
•Colour of housing is white.
•Temperature range -20°C to +45°C.

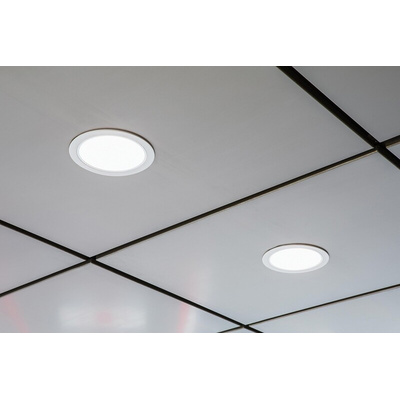

•Recessed ceiling mounting.
•This light is not dimmable.
•Connections are 2-pole (L, N), screw terminals.

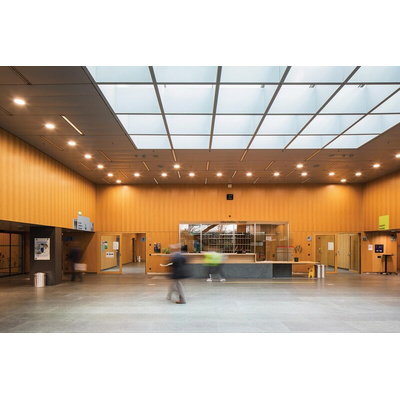

Typical Applications.

•Anywhere to replace compact fluorescent lamps.
•General lighting areas.
•Public areas.
•Stairways.
•Corridors.
•Foyers.
•Shops.

Ledvance Round Downlights Available.

•Stock number 1798518, DL Slim DN 105, 6 W, 220 to 240 V, 4000 K, Cool White, 118 x 30 mm, cut out 105 mm.
•Stock number 1798519, DL Slim DN 155, 12 W, 220 to 240 V, 3000 K, Warm White, 169 x 30 mm, cut out 155 mm.
•Stock number 1798520, DL Slim DN 155, 12 W, 220 to 240 V, 4000 K, Cool White, 169 x 30 mm, cut out 155 mm.
•Stock number 1798521, DL Slim DN 210, 18 W, 220 to 240 V, 4000 K, Cool White, 225 x 30 mm, cut out 210 mm.
•Stock number 1837365, DL ALU (aluminium) DN 150, 14 W, 220 to 240 V, 4000 K, Cool white, 160 x 52 mm, cut out 200 mm.
•Stock number 1837366, DL ALU (aluminium) DN 200, 25 W, 220 to 240 V, 4000 K, Cool white, 215 x 61 mm, cut out 200 mm.

FAQ’S

How much power do LED’s use?

On average LED’s use 90% less power compared to incandescent bulbs. The reason for this is that LED’s are more efficient in converting energy into light.

How long do LED’s last for?

So, we have mentioned how LED’s offer longer lifetimes and less maintenance needed, this is because it’s a type of solid state lighting. It is less likely to fail completely, a well-built Led luminaire should last up to 50000 hours.

How can LED’s save you money?

It’s thought that around 20% of a household’s energy consumption comes from lighting, within commercial premises this could be even more. The cost of switching to LED is soon outweighed with the savings made to a light source that uses a fraction of the energy.

Standards

CE, CB, ENAC, TUV SUD, RoHS, IK02, IP44, Protection Class II.

Datasheet 4058075091511

Instruction User Guide
