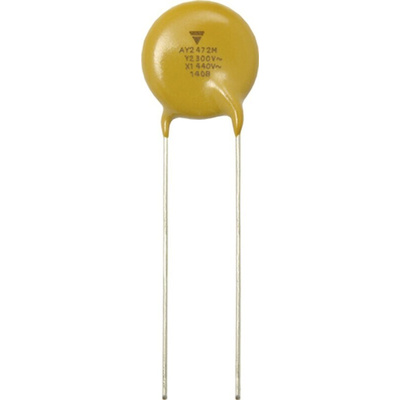

AY2103M61Y5VS63L0, Vishay Single Layer Ceramic Capacitor (SLCC) 10nF 300V ac ±20% Y5V Dielectric, AY2, Through Hole +125°C Max Op. Temp., Конденсатор

The capacitor consists of a ceramic disc which is silver plated on both sides. Connection leads are made of tin plated copper-clad steel having a diameter of 0.6 mm. The capacitors may be supplied with straight or kinked leads having a lead spacing of 5 mm, 7.5 mm, or 10.0 mm. Encapsulation is made of flame retardant epoxy resin.

Withstands 85 / 85 / 1000 h test
Can pass 3000 temperature cycles (from -55 °C to +125 °C)
High reliability
Vertical (inline) kinked or straight leads
Single layer AC disc safety capacitors
PPAP (AIAG version) is available
APPLICATIONS
Application as Y capacitors for AC line filter and primary-secondary coupling on battery chargers for PHEV/EV
Application as filter capacitors on DC/DC converters for PHEV/EV and HEV
