CUS100ME-36/A, TDK-Lambda, 100W Embedded Switch Mode Power Supply SMPS, 36V dc, Enclosed, Medical Approved, Источник питания

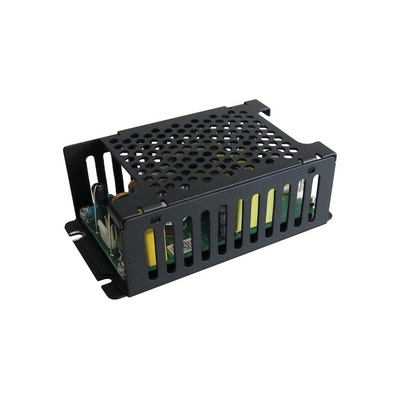

CUS100ME is a single output 2” x 4” AC/DC supply available in four mechanical formats: Open pcb, pcb with baseplate, U channel and U channel with cover.The power supply is rated at 100W maximum output power.With baseplate and U channel conduction cooling assistance this rating can be achieved at up to 70°C ambient temperature and with forced air cooling of 1m/s operation up to 85°C ambient temperature is possible. CUS100ME is suitable for both Class I and Class II installations, is available with 12V to 48V outputs and is ideal for medical and general applications that require silent operation with no fan noise.Efficiency is up to 94%, and off load power consumption is less than 0.5W.

100W Convection Rating　
75W With 1m/s Airflow at 85°C Ambient　
Suitable for Class I and Class II installations　
Class B Conducted and Radiated EMI
Applications
General Purpose Industrial
Medical / Scientific
Test & Measurement
Broadcast
LED Lighting & Signs

Datasheet
