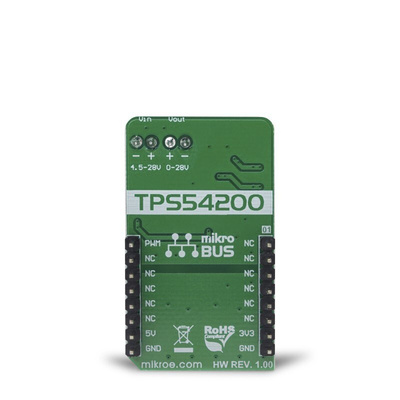

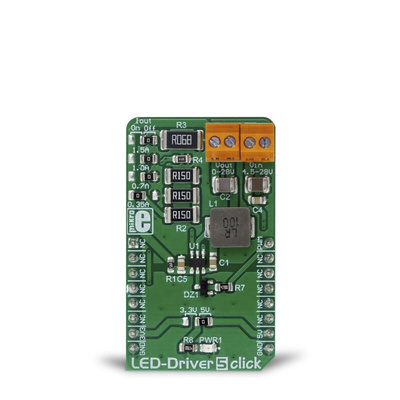

MikroElektronika LED Driver 5 Click PWM Development Board MIKROE-3297

LED Driver 5 click is a Click board™ capable of driving an array of high-power LEDs with constant current, up to 1.5A. This Click board™ features the TPS54200, a highly integrated LED driver IC, with many useful features. It consists of a synchronous, fixed-frequency buck converter which operates at 600kHz, providing an excellent size/efficiency ratio. LED Driver 5 click can use both analogue and PWM control signal for dimming the connected LED array.It comes in the package which also includes the mikroSDK™ software and a library with all the functions. The Click board™ is ready to use on the development board.

14.5-V to 28-V Wide Input Range
Integrated 150-mΩ and 70-mΩ MOSFETs for 1.5‑A, Continuous Output Current
Low, 2-μA Shutdown Current
Fixed 600-kHz Frequency
Peak Current Mode With Internal Compensation
200-mV and 100-mV Sense Voltage During analogue and PWM Dimming Modes
Precision analogue Dimming (ADIM) by PWM Input
LED-Open and -Short Protection
Sense-Resistor-Open and -Short Protection
Shutdown-and-Latch Mode Protection (TPS54200)
Auto-Retry Mode Protection (TPS54201)
Thermal Shutdown
6-Pin SOT-23-THIN Package

Datasheet MIKROE-3297
