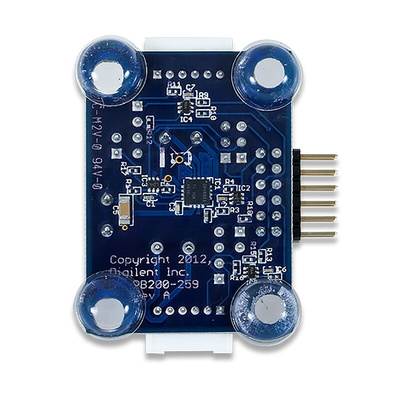

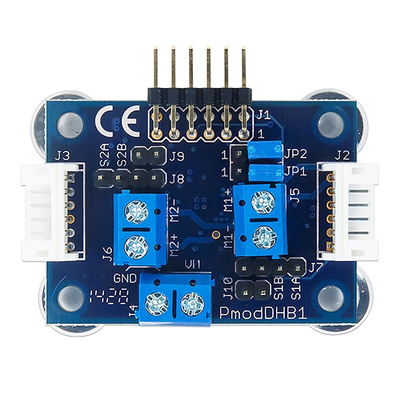

410-259, Digilent Development Kit PmodDHB1 Module for use with DRV8833 Dual H-Bridge Motor Driver

1840471
Номер производителя: 410-259Производитель: Digilent
Цена за шт.
4683.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

The Pmod DHB1 uses the Texas Instruments® DRV8833 dual H-Bridge motor driver chip to drive two DC motors or a single stepper motor. Each H-Bridge can be driven by GPIO signals.

Dual H-Bridge capable of 1.5A RMS
Two quadrature encoder channels for motor feedback
Two JST 6-pin ports for connection to Digilent motor/gearbox
Over-current protection
Recommended 10.8 V max motor voltage
Logic input voltage range of 2.5 V to 5 V
Small PCB size for flexible designs 1.3“ ´ 1.8” (3.3 cm ´ 4.6 cm)
Follows Digilent Pmod Interface Specification Type 5

Техническая спецификация
pdfDatasheet
Название комплекта:
PmodDHB1 Module
Функция управления питанием:
Half-Bridge Driver
