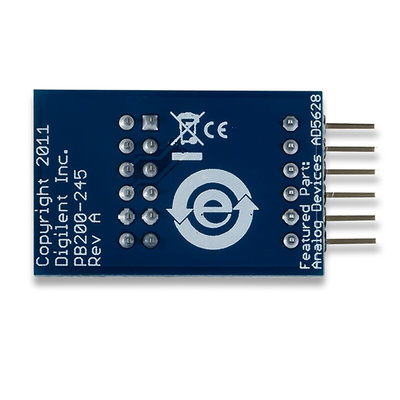

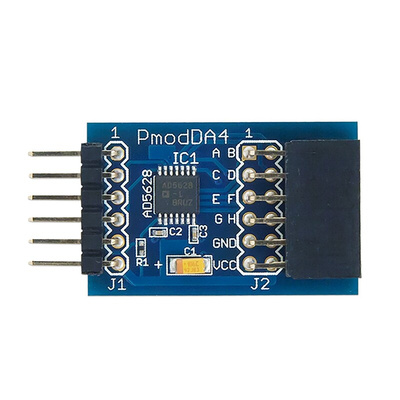

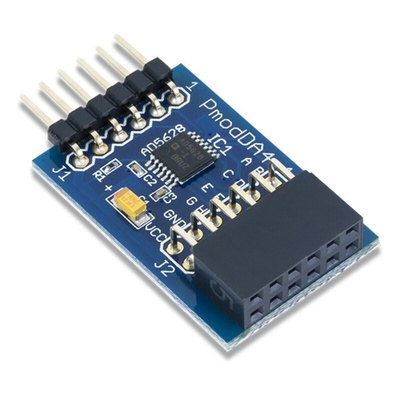

410-245, Digilent Development Kit PmodDA4 for use with High Speed DSP

The Pmod DA4 is an 8 channel 12-bit Digital-to-analogue Converter run via the analogue Devices AD5628.By communicating with the device through SPI, users may send different analogue values on individual channels or output to all 8 channels simultaneously.

Eight channel, 12-bit DAC
Capable of eight simultaneous outputs
High-speed DSP compatible
Power-down function capability
Low power consumption
Small PCB size for flexible designs 1.2“ ´ 0.8” (3.0 cm ´ 2.0 cm)
6-pin Pmod connector with SPI interface
Follows Digilent Interface Specification Type 2
Example code available in resource center

Datasheet
