410-379, Digilent Development Kit Pmod I2S2 Stereo Audio Input and Output for use with Cirrus CS5343 Audio A/D Converter, Cirrus CS5343

1840481
Номер производителя: 410-379Производитель: Digilent
Цена за шт.
7227.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

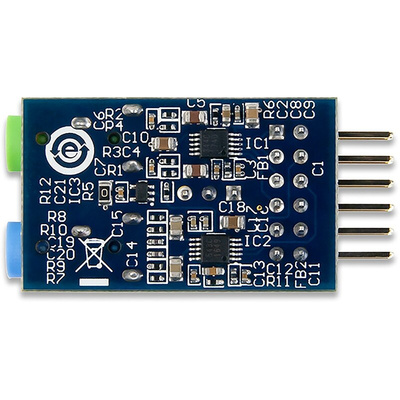

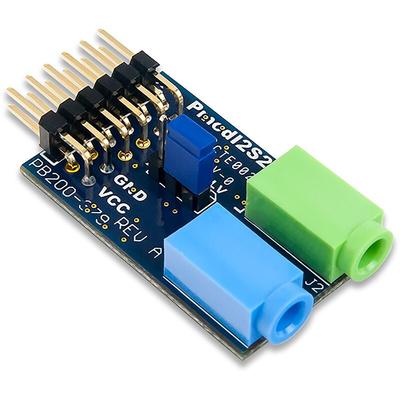

The Digilent Pmod I2S2 features a Cirrus CS5343 Multi-Bit Audio A/D Converter and a Cirrus CS4344 Stereo D/A Converter, each connected to 3.5mm Audio Jacks. These circuits allow a system board to transmit and receive stereo audio signals via the I2S protocol. The Pmod I2S2 supports 24-bit resolution per channel at input sample rates up to 108KHz.

Stereo 24-bit A/D and D/A converters for I2S audio input and output
Standard 1/8“ (3.5mm) stereo audio jacks
Optional automatic serial clock generation for audio input
12-pin Pmod Port with two I2S interfaces
Follows the Digilent Pmod Interface Specification 1.2

Техническая спецификация
pdfDatasheet
Название комплекта:
Pmod I2S2 Stereo Audio Input and Output
Рекомендуемое устройство:
CS5343, CS4344
