MIKROE-3000, MikroElektronika Development Kit H-Bridge 2 Click for use with Direction Control, Mechanized Toys, Motor Speed, Movement Actuators,

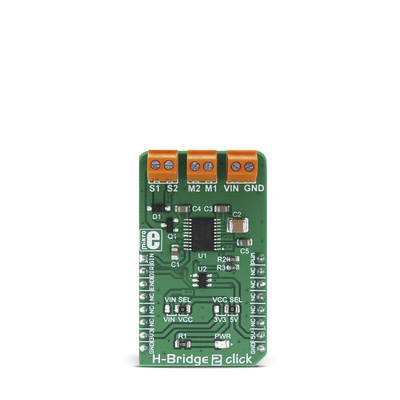

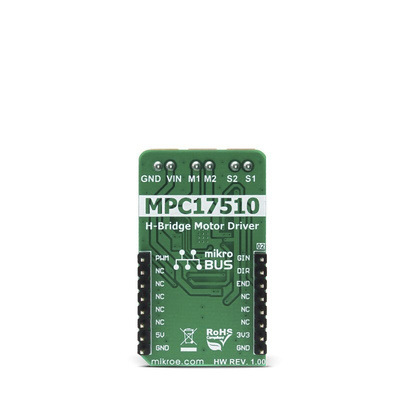

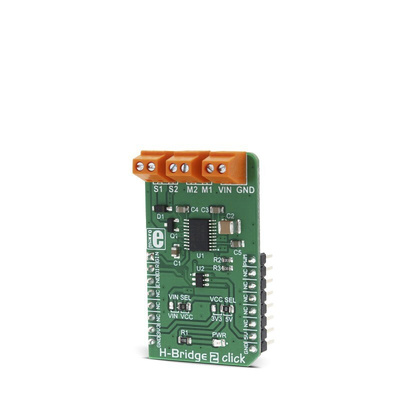

H-Bridge 2 click can be used to drive a motor by utilizing a specific configuration of the output stage MOSFETs, known as the H-bridge. This configuration enables H-Bridge 2 click to drive a motor with up to 1.2A and 15V, providing control of the speed and direction, as well as the dynamic (rheostatic) braking capability. The Click board™ uses a monolithic H-bridge IC, which implements a set of features that provide trouble-free operation of the connected motor, such as the undervoltage detection, shoot-through current protection, efficient output stage MOSFETs with low RDSON, level shifted output for an external MOSFET control and more.

2.0 V to 15 V continuous operation
Output current 1.2 A (DC), 3.8 A (peak)
450 mΩ RDS(on) H-Bridge MOSFETs
5.0 V TTL- / CMOS-compatible inputs
PWM frequencies up to 200 kHz
Undervoltage shutdown
Cross-conduction suppression
