MIKROE-3131, MikroElektronika Development Kit Voltage to Frequency Converter for use with AD Conversion, Linear Frequency Modulation, Long-Term

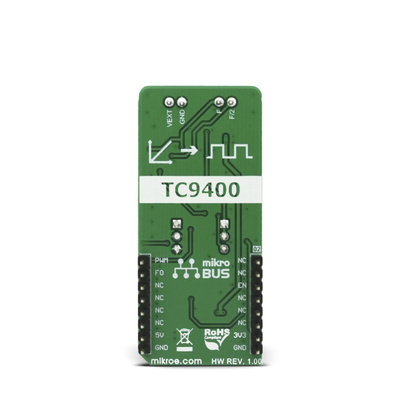

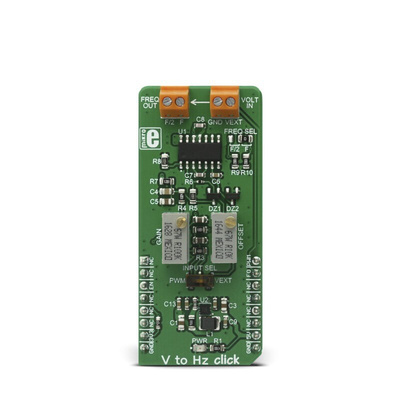

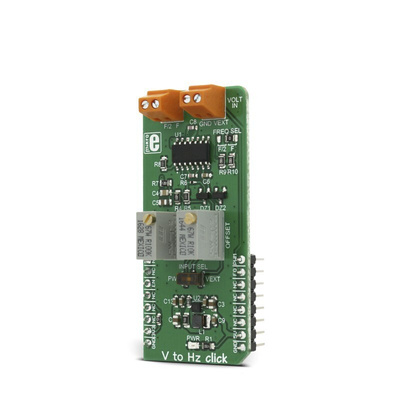

V to Hz 2 click is a device that converts an analogue voltage input signal into a pulse wave signal of a certain frequency. It has a linear response, so applying a voltage in a range of 0 to 3.3V on its input, will result in generating the pulse train with frequency linearly proportional to the input voltage. This click features very good linearity, covers a frequency range between 200 Hz to 120 kHz, and it has good temperature stability.

Dual Adjustable Output Voltages up to 15 V and
down to –15 V
2–A Typical Switch-Current Limit for Boost and
Inverter Main Switches
High Conversion Efficiency
– Up to 91% at Positive Output Rail
– Up to 85% at Negative Output Rail
– Power-Save Mode at Low Load
Independent Enable Inputs for Power-Up and
Power-Down Sequencing
Control Output for External PFET to Support
Complete Supply Disconnect When Shut Down
2.7-V to 5.5-V Input-Voltage Range
Minimum 1.25-MHz Fixed-Frequency PWM
Operation
Thermal Shutdown
Overvoltage Protection on Both Outputs
0.2-μA Typical Shutdown Current
Small 4-mm ´ 4-mm QFN-24 Package (RGE)
Applications
Small- to Medium-Size OLED Displays
(TFT) LCD, CCD Bias Supply

Brochure - MIKROE
