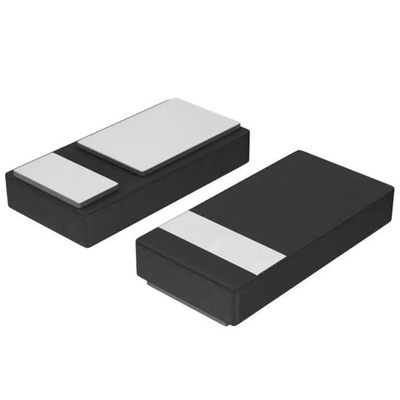

onsemi 40V 2A, Schottky Diode, 2-Pin DSN - 0603 NSR20F40NXT5G, Диод

These Schottky barrier diodes are optimized for low forward voltage drop and low leakage current and are offered in a Chip Scale Package (CSP) to reduce board space. The low thermal resistance enables designers to meet the challenging task of achieving higher efficiency and meeting reduced space requirements.

Very Low Forward Voltage Drop 550 mV @ 2.0 A
Low Reverse Current 15 A @ 10 V VR
2.0 A of Continuous Forward Current
Power Dissipation of 665 mW with Minimum Trace
ESD Rating Human Body Model: Class 3BESD Rating Machine Model: Class C
Very High Switching Speed
These Devices are PbFree, Halogen Free/BFR Free
Applications:
LCD and Keypad Backlighting
Camera Photo Flash
Buck and Boost dcdc Converters
Reverse Voltage and Current Protection
Clamping & Protection

Datasheet NSR20F40NXT5G
