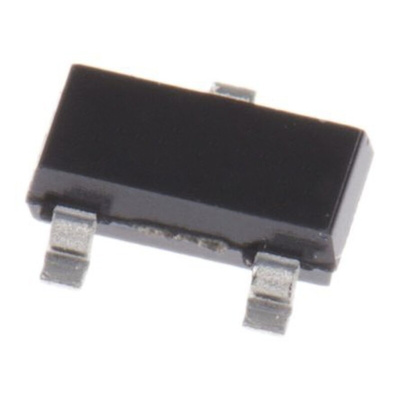

SZBZX84C4V7LT1G, onsemi, 4.7V Zener Diode ±5% 250 mW SMT 3-Pin SOT-23, Стабилитрон

Zener Diodes 225mW, BZX84, SZBZX84 Series, ON Semiconductor

This series of Zener diodes is offered in the convenient, surface mount plastic SOT-23 package. These devices are designed to provide voltage regulation with minimum space requirement. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.

250 mW Rating on FR-4 or FR-5 Board
Zener Breakdown Voltage Range - 2.4 V to 75 V
Package Designed for Optimal Automated Board Assembly
Small Package Size for High Density Applications
Mechanical Characteristics:
CASE: Void-free, transfer-molded, thermosetting plastic case
FINISH: Corrosion resistant finish, easily solderable
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260°C for 10 Seconds
POLARITY: Cathode indicated by polarity band
Tight tolerance series available
Pb-Free Packages are Available

Zener Diodes, ON Semiconductor

Datasheet SZBZX84C4V7LT1G
