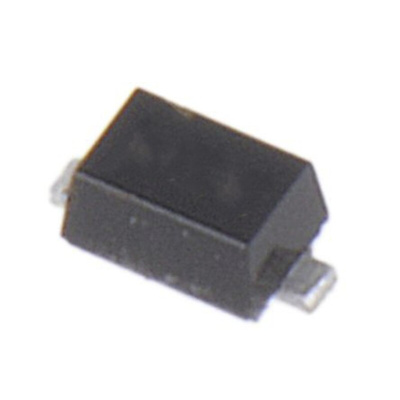

MM5Z5V6ST1G, onsemi, 5.73V Zener Diode ±2% 500 mW SMT 2-Pin SOD-523, Стабилитрон

This series of Zener diodes is packaged in a SOD-523 surface mount package. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.

Standard Zener Breakdown Voltage Range -2.4 V to 18 V
Steady State Power Rating of 500 mW
Small Body Outline Dimensions: 0.047 x 0.032 (1.20 mm x 0.80 mm)
Low Body Height: 0.028 (0.7 mm)
ESD Rating of Class 3 (>16 kV) per Human Body Model
Tight Tolerance VZ
These are PbFree Devices
Applications
Cellular phones, Handheld Portables, and high density PC Boards

Datasheet MM5Z5V6ST1G
