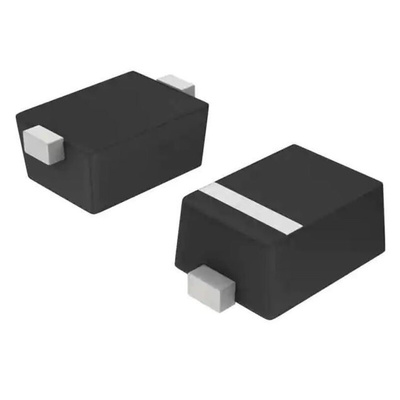

onsemi 30V 500mA, Schottky Diode, 2-Pin SOD-923 NSR0530P2T5G, Диод

Schottky diodes are optimized for very low forward voltage drop and low leakage current and are used in a wide range of dc-dc converter, clamping and protection applications in portable devices. NSR0530P2 in a SOD-923 miniature package enables designers to meet the challenging task of achieving higher efficiency and meeting reduced space requirements.

Very Low Forward Voltage Drop - 370 mV @ 100 mA
Low Reverse Current - 1.4 A @ 10 V VR
500 mA of Continuous Forward Current
Power Dissipation of 190 mW with Minimum Trace
Very High Switching Speed
Low Capacitance - CT = 10 pF
This is a Pb-Free Device
Applications:
LCD and Keypad Backlighting
Camera Photo Flash
Buck and Boost dc-dc Converters
Reverse Voltage and Current Protection
Clamping and Protection

Datasheet NSR0530P2T5G
