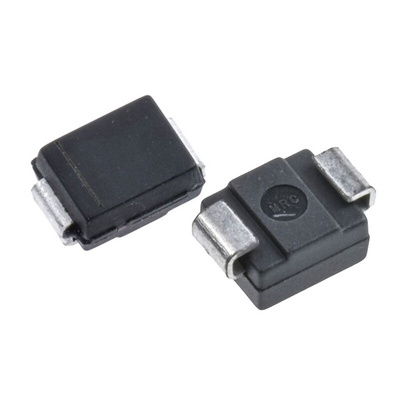

onsemi 20V 2A, Schottky Diode, 2-Pin DO-214AA SS22T3G, Диод

This Schottky Rectifier employs the Schottky Barrier principle in a large area metal-to-silicon power diode. State-of-the-art geometry features epitaxial construction with oxide passivation and metal overlay contact. The Schottky Rectifier is ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system.

Compact Package with J-Bend Leads Ideal for Automated Handling
Highly Stable Oxide Passivated Junction
Guard ring for Over-Voltage Protection
Low Forward Voltage Drop
Mechanical Characteristics:
Case: Molded Epoxy
Weight: 95 mg (approximately)
Cathode Polarity Band
Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
Available in 12 mm Tape, 2500 Units per 13'' Reel, Add ''T3'' Suffix to Part Number
Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
ESD Ratings: Machine Model = C (>400V), Human Body Model = 3B (>8000V)
Pb-Free Package is Available

Datasheet SS22T3G
