DMED300T2, Lovato DME 3 Phase LCD Digital Power Meter with Pulse Output, Измеритель мощности

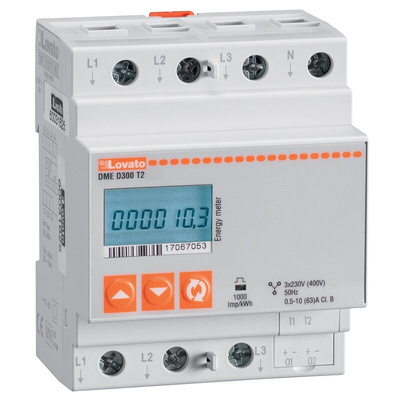

The DME D300T2 is a three-phase active and reactive energy meter for direct connection, for currents up to 80A. Apart from energy metering, it can measure additional quantities, for a total of 45 measurements that can be viewed on the backlight LCD display. The DME D300T2 has a standard 4U (72mm wide) modular housing and is supplied with sealable terminal blocks.

Modular 35mm DIN-rail housing, 4U(72mm wide)
Direct connection for currents up to 80A
LCD display with backlight
Meter with 6+1 digits
3 keys for measurement selection and programming
Total active and reactive energy meters
Partial active and reactive energy meters,clearable
Hour counter, total and partial
Pulse LED for active energy consumption
Indication of instantaneous consumption (active power)
2 programmable static outputs, for pulse or alarm thresholds
AC input for two-tariff selection.

Datasheet DMED300T2
