AC6801B, Keysight Technologies Bench Power Supply, , 500VA, 1 Output , , 310V, 2.5A, Блок питания

Keysight Technologies Bench Power Supply AC6801B 500VA, 1 Output 310V 2.5A

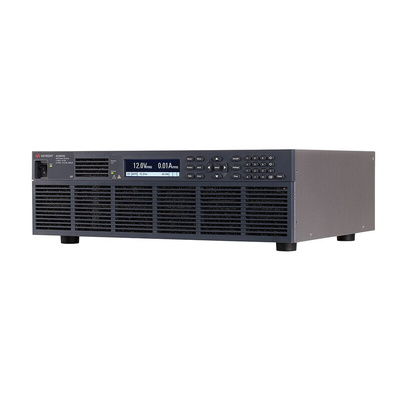

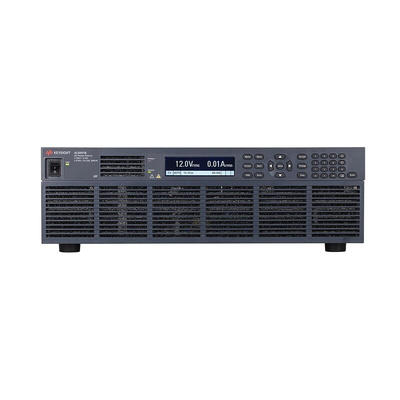

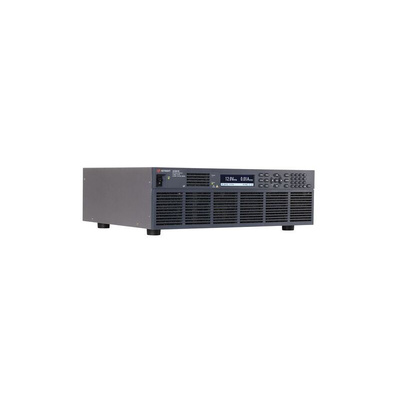

The AC6801B from Keysight Technologies is an AC6800B series basic AC power source. This device is used for voltage, current, power, AC, DC and AC+DC measurements. Its simple user interface allows to easily access, view setup and measurement information directly from the front panel or programmatically. Simply click through the metering options to modify the display to show measurement priorities and increasing levels of details. The basic AC power source is used for simple tasks such as simulating global AC power conditions, testing varying frequency and voltage combinations to simulate real-world conditions and Power factor correction testing and similar AC + DC applications (for example, test your input circuitry to look at ripple voltage). It comes with 3 year warranty.

• Single-phase, 500VA maximum power output, 40-500Hz frequency, 400W power capacity
• AC output mode (low/high): 155Vrms/310Vrms voltage, 5A/2.5A maximum rms current
• DC output mode (low/high): 219V/438V voltage, 4A/2A maximum rms current
• Flexible I/O: LAN/LXI core and USB (standard) and GPIB (optional)
• Set-up, monitor and operate power sources remotely
• 310Vrms or 438VDC isolation to ground
• Operating temperature range from 0 to 40°C (non-condensing)
• 500VDC, 30Mohm or more insulation resistance, 1.5KV AC for 1 minute withstand voltage

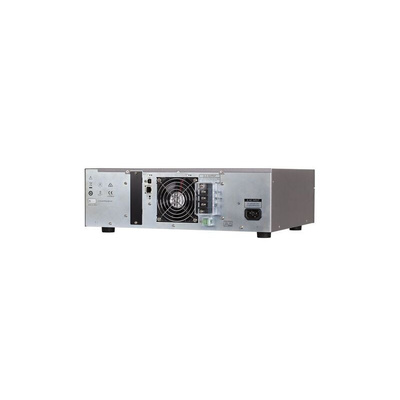

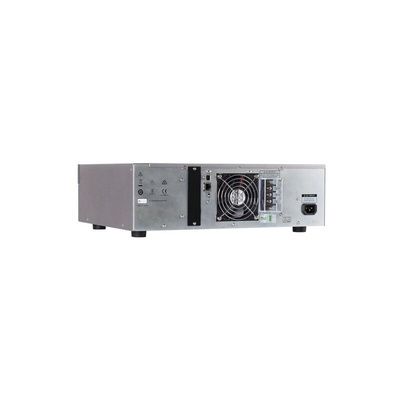

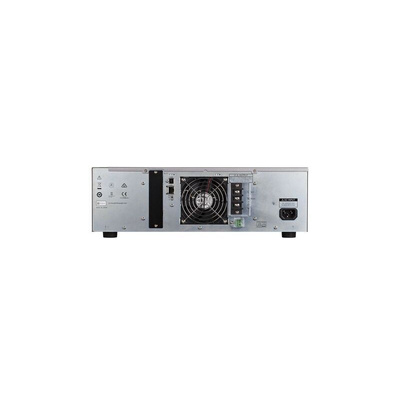

• Input terminal: IEC 320 inlet, output terminal: M4 terminal block
• Dimensions (depth includes barrier block safety cover) is 428 x 128 x 370mm, 8Kg weight

Datasheet AC6801B
