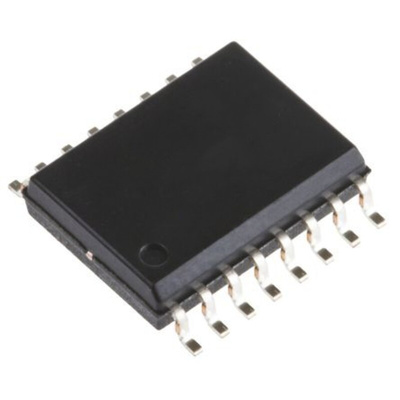

ON Semiconductor MC14536BDWG Quad-Bit Latch Decoder, Pulse, 16-Pin SOIC, Триггер-защелка

The MC14536B programmable timer is a 24-stage binary ripple counter with 16 stages selectable by a binary code. Provisions for an on-chip RC oscillator or an external clock are provided. An on-chip monostable circuit incorporating a pulse-type output has been included. By selecting the appropriate counter stage in conjunction with the appropriate input clock frequency, a variety of timing can be achieved.

24 Flip-Flop Stages - Will Count From 20 to 224
Last 16 Stages Selectable By Four-Bit Select Code
8-Bypass Input Allows Bypassing of First Eight Stages
Set and Reset Inputs
Clock Inhibit and Oscillator Inhibit Inputs
On-Chip RC Oscillator Provisions
On-Chip Monostable Output Provisions
Clock Conditioning Circuit Permits Operation With Very Long Rise and Fall Times
Test Mode Allows Fast Test Sequence
Supply Voltage Range = 3.0 Vdc to 18 Vdc
Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range
Pb-Free Packages are Available

Datasheet MC14536BDWG
